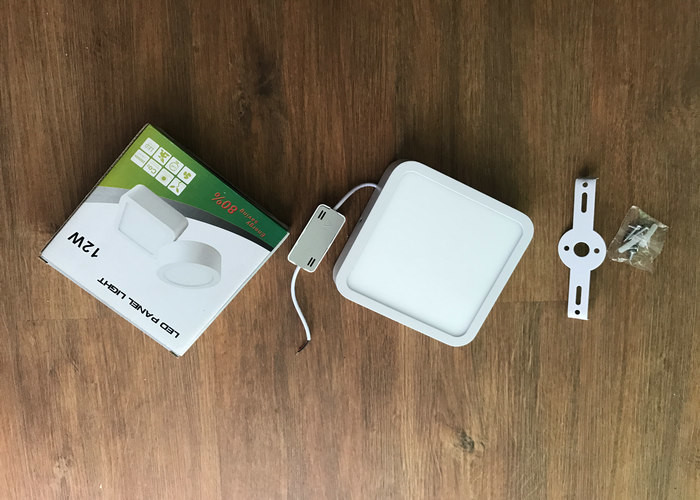

Surface Mounted Dimmable LED Panel Light Square 12W Aluminum 960LM
0-10V CE
1. Description:
Our Dimmable led panel light have 2 installation, one is recessed
mounted, another is surface mounted. Surface mounted dimmable led
panel light has round and square shape, size is 90mm, 145mm, 175mm
and 225mm. Power is 6w, 12w, 18w and 24w. The important parts for
this dimmable led panel light are led chip, 0-10V dimmable led
driver, light guide plate(LGP), alumium housing, diffuser.
1. LED Chip: Latest imported SMD4014 or SMD2835 led chips for
ensuring higher ;lumen with LM80, low decay, long lifespan
2. 0-10V dimmable LED Driver: PF>0.9, flicker free, CE passed
driver, stable isolated IC constant current project, one dimmer can
control several lamps.
3. Light Guide Plate: Adopt Japan Mitsubishi PMMA LGP, 3mm
thickness, uniform lighting, no dark area, soft lighting effect,
90% light transmittance.
4. Aluminum Housing: Aluminum material fixture is good for heat
dissipation.
5. Diffuser: Taiwan CHIMEI supplied material for diffuser, better
glare control
2. Specification:
Voltage: AC85-265V
Model: AD-EPS-PAL-12W
Power: 12W
CCT: 3000K 4000K 6000K
CRI: 80Ra
LED Chip: SMD2835
Lumen: 960LM
LED Driver: IC constant current wide voltage
IP Level: IP20
Material: Aluminum
Size(D*H): 145*mm*30mm
Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120 degree
Operation temperature: -20℃~+60℃
Place of Origin: China
Warranty: 2 years
Approval mark: CE RoHs
Power factor: PF≧0.9
Light guide plate(LGP) brand: Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80): 30000H
3. Features:
1. Voltage: AC85-265V
2. Shape: Round, Square
3. CCT: 3000K, 4000K, 6000K
4. Dimmable and Non-dimmable
5. Installation: Surface Mounted / Recessed Mounted
6. Housing Color: White / Black / Sliver / Bronze / Chrome / Nickel
7. CRI: 800Ra, 90Ra
8. LGP: PMMA, PS
4. Application:
The place you need high intensity and save energy, such as hotel,
meeting room, factory, office, house, shop mall, school, hospital
and library etc, then you can choose our super slim dimmable LED
panel light.
5. More Option:
| Surface Mounted Dimmable LED Panel Light |
| Model | Shape | Color | Size |
| AD-EPS-PAL-6W | Round | W,WW,NW | Φ90mm |
| AD-EPS-PAL-12W | W,WW,NW | Φ145mm |
| AD-EPS-PAL-18W | W,WW,NW | Φ175mm |
| AD-EPS-PAL-24W | W,WW,NW | Φ225mm |
| AD-EPS-SPAL-6W | Square | W,WW,NW | 90*90*mm |
| AD-EPS-SPAL-12W | W,WW,NW | 145*145mm |
| AD-EPS-SPAL-18W | W,WW,NW | 175*175mm |
| AD-EPS-SPAL-24W | W,WW,NW | 225*225mm |
6. Caution:
1. Confirm that this product is no damage during he transportation
before using
2. Put away from the children, prevent the accessories causing some
damage to the children. Don’t let the children touch the lamp when
it is working.
3. No anything else covering the products.
4. Only professional person can repair or tear down this products.
We have the authority to refuse giving any warranty to the products
which are repaired without our instruction.
5. Before cleaning the lamps, please switch off thr power, using
dry cloth to clean and don’t use any chemical or corrosive
material.
