Sensor LED Tube Light Integrated T8 4ft 18W 1800LM Aluminum CE UL
1. Detect any moving object,car,people,etc
2. Detect distance can be 8-12 meters(more distance is possible)
3. Usually 0.5-2.5W power consumption,quick change to full wattage
when the moviing object is coming in 1-2 seconds.
4. Radar sensor technology is more sensitive,faster and stable than
infrared and voice controlled technology
5. Radar sensor is the best choice of energy saving purpose for car
park house or other public area
2. Introduction:
1. Using the doppler effect principle, independent research and
development planar antennas receiving circuit, electromagnetic
environment around intelligent detection, automatically adjust the
working status;
2. Resting low power consumption of the lighting, generally 0.5-2.5
W, and adjustable according to the environment;
3. When human/car or other objects move into the area, automatic
induction work at full capacity, 10 to18 w (0.6 or 1.2 meters of
lamps and lanterns)
4. Full working time: 2 seconds to 60 seconds according to the
environment is adjustable;
5. Induction sensitivity: 1-9 meters;
6. The average daily power consumption: 4.8 watts; 16 hour meter
(according to work 8 hours, static, full load 10 w)

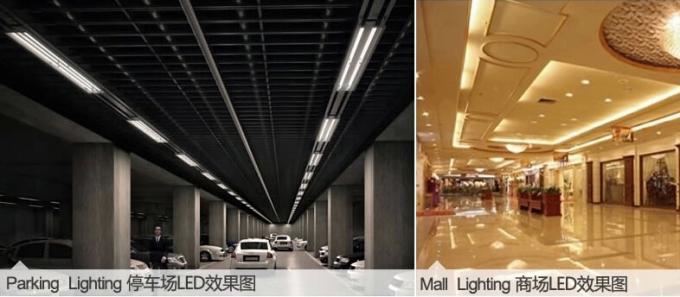

7. Apply to the underground parking lot, shopping malls, stair
isometric lighting places.
8. Wide voltage input. AC85-265V
9. High efficiency 0.89 (100 mA)
10. Compared with infrared products: radar switch induction
distance is farther, perspective is wide, no dead zone, can
penetrate glass, and wood veneers, according to different power,
can penetrate the different thickness of the wall, and is not
affected by environment, temperature, dust, etc, in the case of 37
degrees, not shorten the induction distance. Radar switch is an
ideal upgrade infrared switch products.
11. Use scope: corridor, corridor, toilet, basement, garage,
warehouse, monitoring, and other places of automatic energy-saving
lighting
3. T8 LED Tube Technical Data Sheet:
| Electrical parameters |
| Model No. | AD-T8-RS-900MM-14W | AD-T8-RS-1200MM-18.6W | AD-T8-RS-1500MM-23W |
| LED Consumption(W) | 14W | 18.6W | 23W |
| Tube Size(mm) | L900*Φ26 | L1200*Φ26 | L1500*Φ26 |
| Input Voltage | AC185-265V 50/60Hz | AC185-265V 50/60Hz | AC185-265V 50/60Hz |
| Power factor | PF≧0.9 | PF≧0.9 | PF≧0.9 |
| Rated lifetime | 50000H | 50000H | 50000H |
| Opitical parameters |
| LED Source | SMD2835 | SMD2835 | SMD2835 |
| LED Quantity(pcs) | 75pcs | 100pcs | 125pcs |
| Lumen(lm) | 900LM±5% | 900LM±5% | 900LM±5% |
| Efficiency(lm/watt) | 100lm/w | 100lm/w | 100lm/w |
| CRI(Ra) | 80Ra | 80Ra | 80Ra |
| CCT(Kelvin) | 3000K 4000K 6000K |
| Lifespan (LM80) | 40000H | 40000H | 40000H |
4. Features:
1. Flame resistant Material: For inside part and cover,
insulativity and function, reach international standard.
2. Aluminum Alloy: Using oriental material, aluminum
stiffness>60.0HB strength of extension> 146Mpa
yield strength>60.1Mpa
3. Driver: Korean IC, Japanese MOS tube, Taiwanese Capacity,
High/Low voltage protection,
short circuit protection, stability and long life span
4. LED chip: Japan/Taiwan Imported Chip, 24-26LM/pcs, CRI>80,
low heat, long life-span
5. Pin: High purity Ag soldering, good function of conductivity and
Anti-Oxidation
6. End cap: UL94 VO Class, Flame-resistant material, insulativity
meets IEC standard
7. Aluminum radiator: Anti-rust, anti-oxidation, anti-scrath, super
cooling, good for heat dissipation
6. Lighting effect:
Warm white: 2700-3500K
Yellow lighting applications that require warm place, generally
used mainly home decoration, warm light
could provide a warm atmosphere
Cool white: 6000-6500K
White is the color closest to the sun, have a higher lumens and
color rendering properties of light
