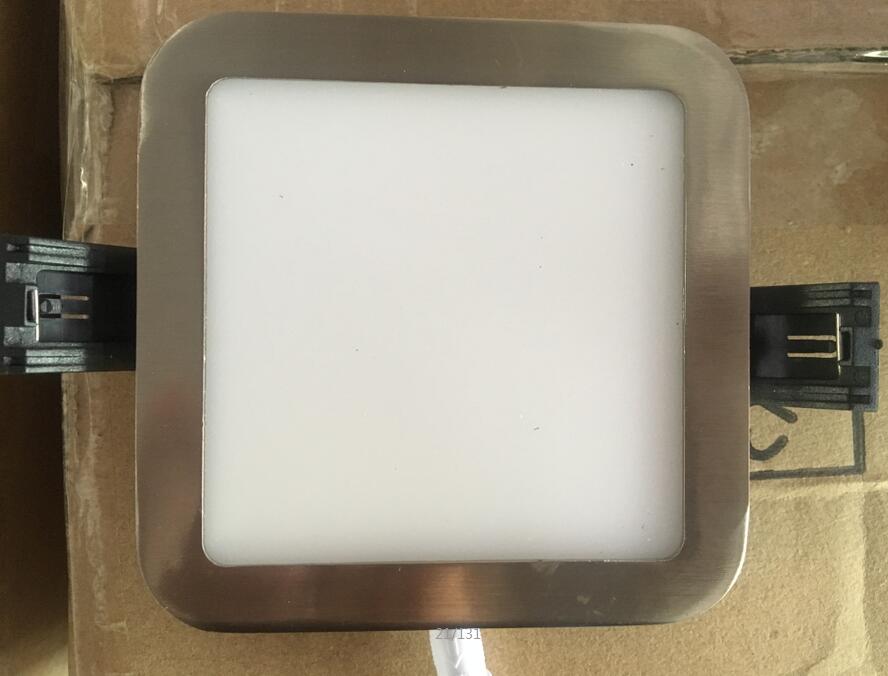

18w Square Recessed Mounted LED Slim Panel Light Aluminum White
6000K SMD2835
1. Description:
Our led slim panel light has round and square shape. The square
shape has 4 different dimension, it is 90*90mm, 145*145mm,
175*175mm and 225*225mm. Power is 6w, 12w, 18w, and 24w. The
housing material is die-casting aluminum, it can bring good heat
dissipation. The housing color is white, also it can customize
other electroplating color, like sliver, black, gold, chrome, brown
and other colors you like. Another great advantage is that the
housing eage is very narrow and smaller, this makes the lighting
area is bigger than old led panel light. The lighting area is about
80%, more light from it, so the light output is higher than same
size panel light. This is why our slim panel light is popular. Also
the led driver is an important part for our slim led panel light.
It is isolated, so it is safety. And IC constant current smart
project, stable and long life. Defective rate is very very low.
2. Specification:
| Voltage | AC85-265V |
| Model | AD-EPR-SPAL-18W |
| Power | 18W |
| CCT | 3000K 4000K 6000K |
| CRI | 80Ra |
| LED Chip | SMD2835 |
| Lumen | 1600LM |
| LED Driver | IC constant current wide voltage |
| IP Level | IP20 |
| Material | Aluminum |
3. Technical Data:
| Size(D*H) | 175*8mm |
| Cutout size | 155mm |
| Material | Aluminum(fixture)+PMMA(LGP) |
| Beam angle | 120° |
| Operation temperature | -20℃~+60℃ |
| Lighting Distance | 1-4meters |
| Mounting height | 2-3meters |
| Place of Origin | China |
| Warranty | 2 years |
| Approval mark | CE RoHs |
| Power factor | PF≧0.9 |
| Light guide plate(LGP) brand | Japan Mitsubishi |
| LGP thinkness | 3mm |
| LGP technology | Dot Laser |
| LGP light transmittance | 90% |
| Lifespan: (LM80) | 30000H |
4. Features:
1. Good color rendering, soft light, uniform light spot, pure light
color
2. Approval with CE, RoHS certificate and ISO 9001 quality system
standards.
3. High-Luminous efficiency, 80-90Lumens/W
4. Energy-saving and environment-friendly Led Lamp
5. Dimmable type:dimmable/non-dimmable
5. Application Places:
4000K Daylight-quality Neutral/Natural White light makes products
pop, shows true-to-life colors.
Commercial Applications: Showrooms • Apparel Stores • Bookstores •
Office Supply and Stationary Stores • Offices • Hallways •
Cafeterias • Waiting Rooms and more
Residential Applications: Kitchens • Bathrooms • Rec Rooms •
Finished Basement Areas
