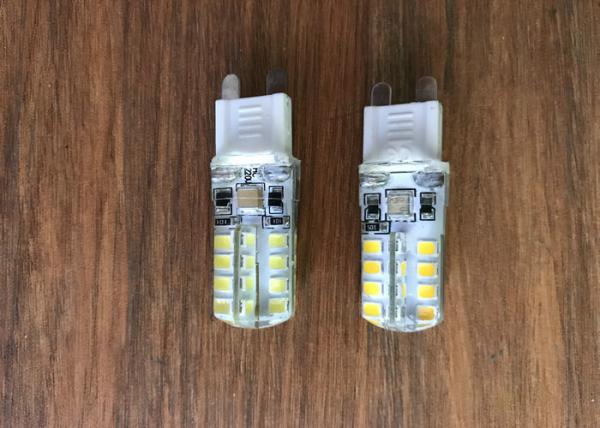

3W G9 LED Light G9 LED Lamp Beads Silicone SMD2835 32LED AC220V
1. Description:
As LED technology is keeping improving, the compatibility of ADO 4W
LED G9 Light dimmable with various dimmers on the market is getting
better and better, meanwhile without decreasing the lumen. Max
lumen is as high as 350 lm at 4W, equivalent 40W halogen G9
capsule. Thanks to our technical experienced engineers, ADO G9 LED
Light dimmable is compatible with most of the dimmers on the
market, and the dimming effect is outstanding among different
brands of G9 bulbs.
2. G9 Advantages:
G9 LED Light are available in cool white and warm white colors.
They typically work for universal voltage from 85 volt to 265 volt.
Dimmable G9 LED bulbs work separately with 110-120 volt or 220-240
volt systems. Retrofit LED G9 bulbs are widely used to replace
halogen capsule G9 lamps; they are applied for household,
decoration, hotels and landscape lighting.
3. High Voltage G9 LED Light:
| AD-G9-2835-40V | SMD2835*40pcs | 100-130V or
220-240V | 3W | 210-230LM |
| AD-G9-3014-64V | SMD3014*64pcs | 100-130V
or
220-240V | 3W | 210-230LM |
AD-G9-4014-64V
Top lighting | SMD4014*64pcs | 100-130V
or
220-240V | 4W | 300-350LM |
AD-G9-3014-72T
CW/WW Dimming | SMD3014*72pcs | 100-130V
or
220-240V | 4W | 310-330LM |
AD-G9-2835-72T
can be customized dimming | SMD2835*72pcs | 100-130V
or
220-240V | 5W | 360-380LM |
| AD-G9-3014-104V | SMD3014*104pcs | 100-130V
or
220-240V | 5W | 360-380LM |
4. Detailed Technical Data:
Model number: AD-G9-2835-32V
Input voltage: AC220-240V
LED Type: SMD2835
Chip Quantity: 32pcs
Base: G9
Size: 15*50mm
LED Driver: IC constant current
Certificate: CE RoHS EMC
Luminous efficiency: 100-110LM/W
Power: 3W
LED Brand: San'An
Total Lumen: 250LM
Color temperature(K): 2800-6500K
Material: Silicone
IP Rating: IP20
Life span: 30000 hours
Warranty: 2 years
CRI(Ra): 80Ra
5. Packing:
18*18*65mm/1pcs
210*108*70mm/50pcs
450*220*330.8mm/1000pcs
6. Features:
1. Dimmable type:dimmable/non-dimmable.
2. CE (LVD & EMC) & RoHS approved
3. High Color Rendering Index
4. Quick Start, No Flicker, No Noise, Eye Protection
5. Environment-friendly and no UV or IR radiation
7. FAQ:
Q1: Are these G9 LED dimmable?
Yes, we can make dimmable G9 LED Light.
Q2: Is this G9 LED compatible with the dimmer on my living room
walls?
Yes, it is compatible with most of the dimmers on the market,
Q3: How is the dimming effect?
The dimming effect is outstanding among different brands of G9
bulbs.
Q4: Will the light bright enough to replace the halogen?
Max lumen is as high as 350 lm at 4W, equivalent 40W halogen G9
capsule.
