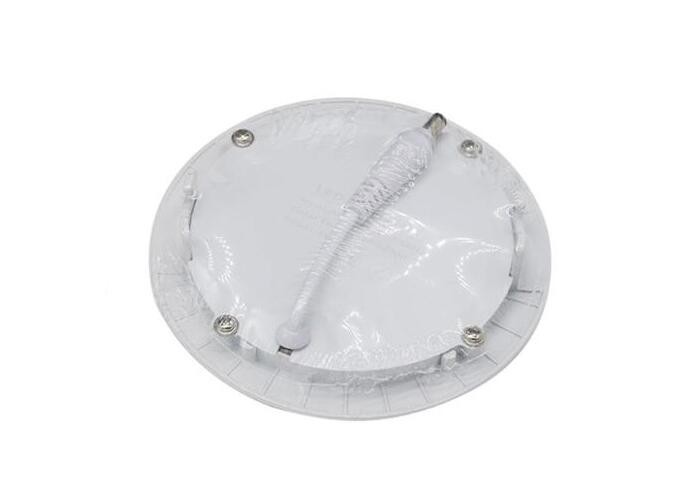

3w LED Slim Panel Light Round 600LM White Aluminum 3000K Embedded
IP20
1.Quick Details:
Light Source: LED
Item Type: Panel Lights
LED Light Source: SMD2835
Warranty(Years): 3
Input Voltage(V): AC85-265V
Lamp Power(W): 3
Lamp Luminous Flux(lm): 240
Lamp Luminous Efficiency(lm/w): 80
CRI (Ra>): 80
Color Temperature(CCT): Cool White
Working Temperature(℃): -20 - 60
Working Lifetime(Hour): 20000
Lamp Body Material: Aluminum
IP Rating: IP33
Certification: CE, EMC, RoHS, SAA, SASO
Place of Origin: Guangdong, China (Mainland)
Brand Name: Ado
Service: OEM/ODM
Material: PC+Aluminum
Diameter: about 1--20*40mm
Application: Shopping Mall
Shape: round
2. LED Driver Information:
| Driver Power | 3W |
| Input Voltage | AC85-265V |
| Input Current | 300mA |
| Project | IC Constant Current Wide Voltage |
| PF | 0.5 |
| Warranty | 2 years |
3. Advantages:
1. Color options for the light:
Interesting part is that such impurities could also decide the
color of the light. This way, the favorite color lighting could be
getting without the use of a filter. LED lights can also generate
white light.
2. Long life:
LED theory life is up to 100000 hours, calculating as 8 hours a
day, its theoretical life will be 27 years. And theoretical life of
the LED panel lights even more than 10 million hours. As per the
Department of Energy, electricity demand for lighting in the U.S.
could be reduced by one-third by 2027 with a quick adoption of LED
light panel, eliminating the need for 40 new power plants.
3. Shock-resistant:
LED light source of the panel is made from a high hardness resin
instead of tungsten wire glass, that isn’t easily damaged. So the
vibration force is comparatively high. Besides, it has good
temperature flexibility.
4. LGP Prameters:
| Light guide plate(LGP) brand | Japan Mitsubishi |
| LGP Material | PMMA |
| LGP thinkness | 3mm |
| LGP technology | Dot Laser |
| LGP light transmittance | 90% |
| Lifespan | 30000H |
5. Features:
A. SMD 2835 LED is more bright and longer lifespan.
B. High luminous efficiency and save more than 90% energy than
incandescent lamp.
C. No UV, IR or mercury is with environment friendly benefit.
D. Ultra-thin design,simple and fashionable appearance.
E. 3w, 6w, 9w, 12w, 15w, 18w, 24w are available.
6. Application Places:
6000-6500K Cold White light provides a bright, clean look and the
most lumens/brightest possible light.
Commercial Applications: Electronics & High-Tech Stores • Auto
Parts Stores • Hardware Stores • Grocery and Convenience Stores •
Hospitals • Schools • Labs and Research Facilities • Warehouses •
Manufacturing Plants • Commercial Kitchens
Residential Applications: Garages • Basements • Workshops • Attics
7. More Options:
| Model | Power | Diameter | Cutout | Lumen | Chip Quantity |
| AD-PAL-3W | 3W | 85mm | 68mm | 210LM | 15PCS*2835 |
|
| AD-PAL-6W | 6W | 120mm | 105mm | 420LM | 30PCS*2835 |
|
| AD-PAL-9W | 9W | 150mm | 130mm | 680LM | 45PCS*2835 |
|
| AD-PAL-12W | 12W | 170mm | 150mm | 900LM | 60PCS*2835 |
|
| AD-PAL-15W | 15W | 200mm | 180mm | 1130LM | 75PCS*2835 |
|
| AD-PAL-18W | 18W | 225mm | 205mm | 1450LM | 90PCS*2835 |
|
| AD-PAL-24W | 24W | 300mm | 280mm | 1920LM | 120PCS*2835 |
|
8. Quality Conrol:
We have a strict quality control system from raw material to
finished products.Each step must pass strict inspection, strive to
produce superior products:
1.Ensure the input quality to achieve the correction and
efficiency;
2.Strict management of static to ensure the each steps carries out
smoothly and under control;
3.Inspect the product to determine whether the process is stable,
the product meets the specified requirements
4.The ability of self-improvement, rapid alarm feedback mechanism,
rapid alarm and feedback when exceptions occur.
