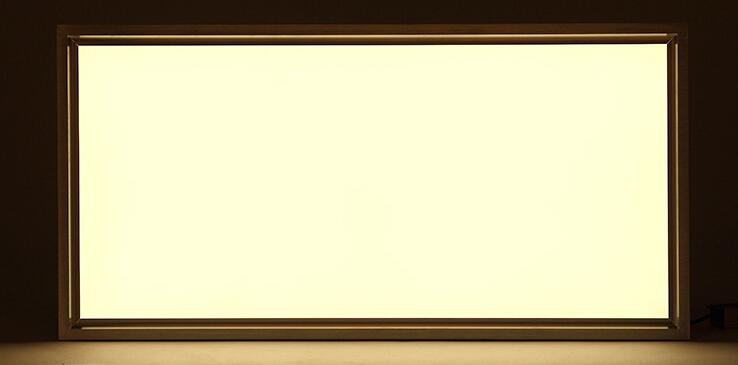

Flat LED Panel Light 48W 6000K 4200LM Aluminum PMMA LGP Sliver 85Ra
3 Years Warranty
1. Description:
Ado LED Flat Panel Light except led driver and led chip material is
high quality, the led light guide plate(LGP) quality is also very
important, The light guide plate is a key point of quality control
of the LED panel light. Good quality LGP can brings better light
transmittance. The light looks more softer, uniform. It can make
light luminous efficiency higher than 100LM/W. And no dark zone. It
is better than PS light guide plate, Nano light guide plate and
glass light guide plate. PMMA material lighting transmittance is up
to 90%, and the color won't change into yellow, not aging, no
chemical. This makes our led flat panel light quality is better
than other supplier.
2. PMMA Light Guide Plate Advantages:
1. Ado flat led panel light adopt PMMA Light Guide Plate, it is
from Japan MITSUBISH, laser dot technology.
2. Light transmittance> 95%, Yellowing rate <3%, reflectance
of 92 to 98%, material is acrylic, not aging.
3. Weathering: Normal sun exposure, no chemical, physical external
force changes, five years of quality unchanged, thermal
deformation> 103 ° , water absorption <3 ‰.
4. The design of the outlets is flexible, and the brightness,
uniformity and degree can achieve the most satisfactory results.
3. Application:
1. Conference/Meeting rooms, Classrooms
2. Offices, Hospitals, Factories
3. Hotels, Offices or other Commercial Complexes
4. Residential/Institution Buildings
4. Features:
1. Non-flickering design with a health lighting and better to
protect your eyes
2. Up to 80% energy saving compared to standard CFL
3. Life to 70% lumen maintenance (L70) at 50,000 hours
4. High brightness LM-80 tested SMD2835 led chips with 110lm/W
output.
5. Imported Light Guide Plate form Japan,high light transmittance
over 92%
6. The side of the light is even and soft, comfortable and bright,
ease eye fatigue, wider angle of light
7. The appearance of simple and stylish, beautiful, never change
color
5. Specification:
Warranty: 3 Years
Trademark: ADO
Housing Material: Aluminum
Dimmable: With Dimmable
Type: Embedded
Certification: CE, RoHS, UL, ISO9001, SAA, CUL, CCC
Beam Angle: 120ºC
Installation: Embedded / Integrated Ceiling / Hang up
HS Code: 940510000, 940510000
Transport Package: 1PCS/Box; 5 Boxes/Carton
6. Technical Data:
Model NO.: AD-PAL66-40W
Light Source: LED
Emitting Color: White
Appearance: Square
Voltage: 100-240V
Color: Cool White
Luminous Efficacy: 85-120lm/W
Size: 600*600*11mm
CRI: >85
IP Grade: IP65
Workingtemperature: (-25 ~ + 45)ºC
7. Enviromental parameter:
| No. | Item | Test condition | Remarks |
| 1 | High temperature test | put product into 50℃ chamber and test for 5 hours | Stop and lit immediately |
| 2 | Low temperature test | put product into -20℃ chamber and test for 5 hours | Stop and lit immediately |
| 3 | Humidity test | 91%～95% | Meet the demand |
