LED Waterproof Flood Light 30w 4000K 3000LM Grey Housing Slim
Fixture SMD Type IP66
1. Description:
LED flood light adopts 3030 light source, energy saving and
environmental protection, high brightness and long service life;

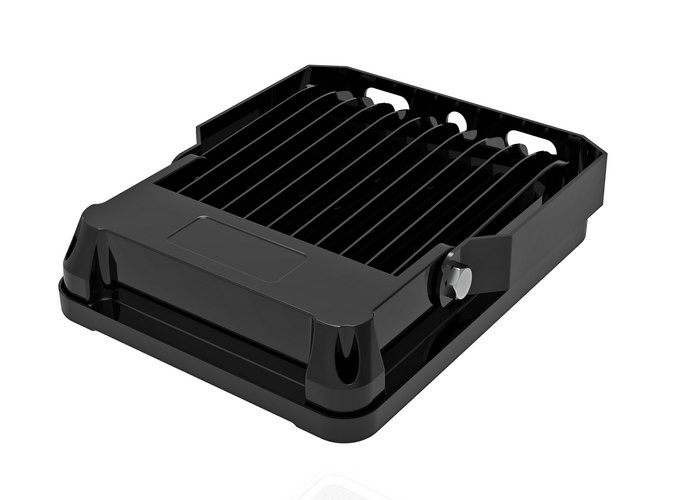

adopts ADC12 aluminum material for die-casting molding, the surface
is treated with special heat conduction, and the heat generated by
the lamp panel and power supply can be quickly exported to reduce
the temperature difference. Reduce the junction temperature of the
light source, ensure that the light source light fades 3%, lifespan
50000 hours; use constant current power supply, high efficiency,
low heat, high precision constant current; unique structure, high
efficiency, energy saving, green and environmental protection.
2. Specification:
Model: AD-XTGD-030A
Power: 30W
LED Quantity: 30pcs
LED Chip: Osram SMD3030
Lumen: 3000LM
CCT: 3000K / 4000K / 6500K
CRI: 80RA
Beam Angle: 120°
Power factor: ≥55%
Shell material: aluminum + tempered glass
LED Driver: CE / TUV / SAA driver
Shell color: black
IP rating: IP66
Size: 175*135*44mm
Warranty: 3 years
Place of Origin: China
Certificate: CE RoHs
3. Advantages:
A, using high-quality LED as a light source, energy saving and
environmental protection, compared to traditional light sources,
saving more than 60%.
B, light uniform and soft, and high brightness. The color rendering
is good, the appearance of the physical color is more accurate, and
various light colors are available, which can meet the needs of
different environments.
C, the use of high efficiency constant current driver, wide voltage
input, can work in the voltage instability of the place.
D, lightning strike, the lamp body is made of aluminum alloy
material, high strength, corrosion resistance and good weather
resistance, good heat dissipation.
4. Technical Data Sheet:
| Input Voltage: | AC100-277V |
| Power: | 30W |
| Working Frequency: | 50~60Hz |
| Power factor: | >0.9 |
| LED Quantity: | 30 pcs |
| LED Type: | 3030 |
| Luminous Efficiency: | 120LM/W(±5%) |
| CCT: | 2700~6500K |
| CRI: | >80 |
| Working temperature: | -30~+45℃ |
| IP Level: | IP66 |
| Life Expectancy: | 50000Hr |
Input Voltage: | Brown(L) Yellow(G) Blue(N) |
| Dimension: | 215*175*47mm |
| Certificates: | TUV / CE / SAA / FCC / RoHS |
| Net Weight /Gross Weight: | 1.30 kg / 19.5 kg |
| Packing Size: | 62*33*25cm 15pcs/CTN |
5. Application:
A. Green Landscape Lighting
B. Billboard lighting
C. Historic building exterior lighting
D. Tunnel lighting
E. Light transmission outside the building
F. Stadium lighting
6. Installation instructions:
1. Non-professional technicians, please do not repair or modify
this product without permission.
2. Please turn off the power before installation to avoid improper
operation and electric shock.
3. Before installation, please check whether the voltage marked on
the mast lamp is the same as the input voltage to be connected, so
as not to damage the LED lamp.
4. In order to ensure the service life of the product, please do
not use it in places with strong acid mist.
5. Pay attention to shockproof during installation and
transportation.
6.Before installation, ensure that the installation location can
withstand 10 times the weight of the product, and install it in a
flat place without vibration, no swing, and no fire hazard;
7. If the lamp fails, please place the lamp in a place and send it
back to our company for testing and repair.
8. If you find that the lamp wire is broken, stop using it
immediately.
