LED Spot Bulbs 9W A60 80Ra 850LM SMD2835 Aluminum PC 4000K CE 2
Years
1.9W LED Spot BulbTechnical Data Sheet:
| Model | AD-BAB-9W |
| Certificate | CE RoHS |
| Cover | PC Milky |
| Lamp Luminous Efficiency(lm/w) | 93LM/W |
| Voltage(V) | AC85-265V 50/60Hz |
| Type | 9W LED Bulb A65 |
| IP Grade | IP20 |
| CRI (Ra>) | 80 |
| Color Temperature(CCT) | 3000k 4000k 6000k |
| Working Temperature(℃) | -20~+50 |
| Working Lifetime(Hour) | 50000 |
| Lamp Body Material | Aluminum Alloy |
| Certification | CE, EMC, LVD, RoHS |
| Base Type | E27 |
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | ADO |
| Product Name | 9 watt led bulb |
| Application | residential indoor |
| Beam angle | 120 Degree |
| Warranty | 2 Years |
| Material | Aluminum+plastic |
| Power | 7W |
| PF | 0.5-0.9 |
| Size | φ65*H118mm |
| LED Chip | SMD2835 |
2. LED bulb Features:
1. High Transmittance: adopting high quality PC cover, pearly
luster, transmittance reach 95%;
2. Use good Taiwan Epistar led chip, life span reach 50,000 hours
3. Soft lighting and no glare
4. Hig quality alluminum alloy housing for heat dissipation, more
lighter.
3. Other Types specification:
| Model | Power | Size
(mm) | LED Type | LED Quantity | Lumen
(90LM/W) | Input
Voltage | Base | Color Temperature |
| AD-BAB-5W | 5W | φ50*H90 | SMD 2835 | 7PCS | 490LM | AC86-265V | E27 | 3200-6000K |
| AD-BAB-7W | 7W | φ60*H114 | SMD 2835 | 9PCS | 690LM | AC86-265V | E27 | 3200-6000K |
| AD-BAB-9W | 9W | φ65*H128 | SMD 2835 | 12PCS | 900LM | AC86-265V | E27 | 3200-6000K |
| AD-BAB-12W | 12W | φ70*H133 | SMD 2835 | 16PCS | 1150LM | AC86-265V | E27 | 3200-6000K |
| AD-BAB-15W | 15W | φ80*H147 | SMD 2835 | 21PCS | 1440LM | AC86-265V | E27 | 3200-6000K |
4. Packaging:
1. Normal Color box/Window box/Blister card depend on customer's
choice .
2. Our design /OEM depend on customer's choice
5. Quick Details:
A. High lumen 100LM/W and high brightness, super energy saving
performance
B. Alumium coated plastic lamp body, more efficient radiating,
effectively improve the life span of lamp
C. High transmittance PC cover material, lighting transmmittance up
to 90%, not easily break, more safer and durable than traditional
light cover
D. E14 / E26 / E27 / B22 base is available
E. Wide voltage led driver, IC constant current, smart and safe
project with long life
6.Our advantages:
1.Reply your enquiry in 8 working hours.
2.Customized design is available. OEM&ODM are welcome.
3.All producte offer 2 years warranty
4.Can put your logo or brand on products with laser if quantity
reach to 1000pcs
5.Strictly controll the quality,every product goes through 24-48
hours light aging process

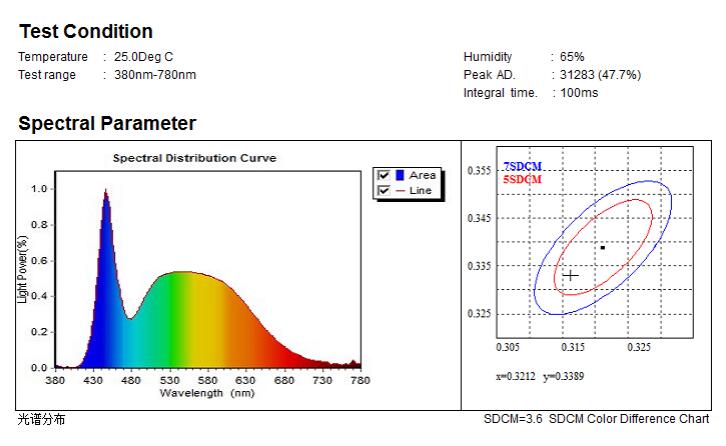

7. Our 9w led bulbs test report:
