LED Spot Bulbs IP20 45 degree 3W 5W 7W MR16 GU10 E27 White Housing
CE Dimmable
1. LED Spot Light Features:
1. Power: 3W, 4W, 5W, 7W
2. Voltage: AC220V, AC110V, AC85-265V, DC12V, AC12V
3. Color temperature: 2700-3000K, 4000-4500K, 6000-6500K
4. CRI: 80Ra or 90Ra
5. LED Type: COB 1W, 3W, 5W and 7W, SMD5050, SMD2835 and SMD3030
6. Beam Angle: 30 degree, 38 degree, 45 degree, 60 degree, 120
degree,
7.Housing color: white, black, grey, sliver
8. Dimmable and non dimmable version are optional
9. Base: GU10, MR16, E27, GU5.3
10. Packing: Neutral white box, Neutral color box, Customize box.
11. Material: Aluminum, Ceramic, PC.
12. Certificate: CE RoHS FC 3C
13: 2 Year warranty and 3 years warranty
2. Application:
Can be widely used in lighting in places such as shopping malls,
homes, conference rooms, exhibitions, and advertising lighting. It
can be used as a low-power outdoor lighting device and can replace
3 to 5 times other traditional lighting fixtures.
1. Star hotels, express hotels, chain hotels, hotels, etc., such as
the seven-day hotel chain.
2. Shopping malls, shopping malls and other shopping venues, such
as Intime Department Store
3. Stores, etc., such as the Silver Age store

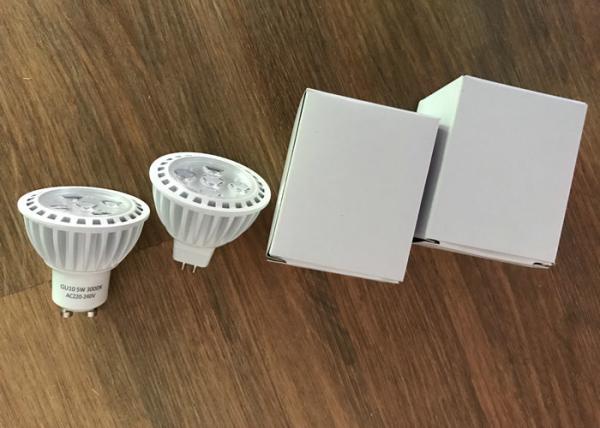

3. 5W MR16 and GU10 LED Spot Bulb Specification:
| Model number | AD-SP05-5W | AD-SP05-5W |
| Power | 5W | 5W |
| Lumen | 450LM | 450LM |
| Input voltage | AC220-240V | AC/DC12V |
| Base | GU10 | MR16 |
| LED brand | Epistar | Epistar |
| LED light source | 1W | 1W |
| LED Quantity | 5pcs | 5pcs |
| Beam Angle | 45 degree | 45 degree |
| LED Type | SMD3030 | SMD3030 |
| LED Lumen | 110LM/W | 110LM/W |
| Color temperature(K) | 2700K 4000K 6000K | 2700K 4000K 6000K |
| CRI(Ra) | 80Ra | 80Ra |
| Shell material | Aluminum | Aluminum |
| Lamp Size(mm) | 50*53mm | 50*57mm |
| IP rating | IP20 | IP20 |
| Life span(hour) | 30000 hours | 30000 hours |
| Warranty | 2 years | 2 years |
| Place of Origin | China | China |
| LED Driver | IC constant current | IC constant current |
| Dimmable | Yes | Yes |
| Certificate | CE RoHS | CE RoHS |
4. 3W, 5W, 7W LED Spot Bulb Specification:
| Model | AD-SP05-3W | AD-SP05-5W | AD-SP05-7W |
| Power | 3W | 5W | 7W |
| Base | GU10 E27 MR16 |
| Voltage | AC 85-265V DC / AC12V |
| LED Chip | SMD3030 | SMD3030 | SMD3030 |
| LED Quantity | 3pcs | 5pcs | 7pcs |
| CCT | WW: 2700-3000K NW: 4000-4500K CW: 6000-6500K |
| LED Power | 3*1W | 5*1w | 7*1w |
| Lumen | 240-270LM | 400-450LM | 560-630LM |
| Size | Φ49*57mm | Φ49*57mm | Φ49*75mm |
| Beam Angle | 25° 45° |
5. Warranty:
1. All goods will be guaranteed for 2 years after shipment under
normal using condition.
2. Improper use (wrong voltage, wrong power supply, wrong dimmer
etc) does not within the guarantee.
3. For quality problem, please inform us within three days after
receiving the goods, our quality control team members will help to
handle it.
6. Advantages:
1. Energy-saving and environmentally friendly, is conducive to
recycling
2. Very low heat generating, besides saving light power
3. Low consumption, high brightness
4. Constant-current driver is used to ensure the lamp working with
reliability and stability.
5. Long life span and low maintenance
6. Perfect lighting performance: instant soft light with no dark
spot
