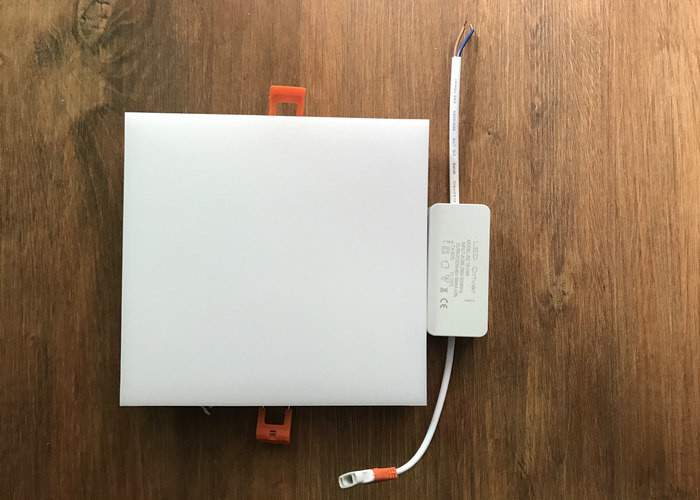

Rimless LED Slim Panel Light 18w Back-lit 1980LM Isolated Driver
120mm
1. 18W LED Slim Panel Light Specification:
| Model | AD-ARL-SPAL-18W |
| Input Voltage | AC85-265V |
| Power | 18W |
| Dimension(L*D*H) | 120mm*120mm*H20mm |
| Lumens | 1980LM |
| LED chip | SMD2835*162pcs |
| CRI | 80Ra |
| CCT | CW NW WW |
| Finish | White |
| Beam Angle | 180 degree |
| Material | Aluminum+PC |
| Shape | Round |
| Lifespan | 50000hours |
| Certificate | CE RoHS |
| Warranty | 2 Years |
2. Features:
1. Oil proof, dust proof,Anti-fog, Transmissivity up to 99%,
Luminous more uniform, no glare, not dazzling, Appearance of the
atmosphere fashion
2. High heat conduction lamp body, fast heat dissipation, Enhance
the heat to make LED longer, Luminous more stable, Greatly reduce
the speed of light decay
3. The lighting has uniform panel glows by high luminousness
reflector. Bright light is completely flat output.
The luminous angle is wider.
4. Smart IC, isolation protection,short circuit protection and
over-load protection, provide a stable, safe and reliable product
performance. Safe isolation protection meets the European standard.
3. Application:
Slim Led Panel light is widely used for Hotel, restaurant, office ,
all of Indoor Public Places;Commercial lighting and Industrial
lighting; Cabinet, show care , and small areas,especially for
Commercial and Office indoor lighting.
4. Advantages:
1. Different Power: 12w 18w 24w 30w
1. Small size with higher wattage and higher lumen >100lm/w.
2. Backlit, recessed round and square panel light are available.
5. Packing:
| 12W | 1.Qty/ctn:50pcs
2.Gross weight: 12KGS 3.Size of carton: 65*28*20cm |
|
|
|
|
|
|
|
|
| 18W | 1.Qty/ctn:40pcs
2 Gross weight: 9KGS 3.Size of carton: 38*33*32cm |
|
|
|
|
|
|
|
|
| 24W | 1.Qty/ctn:30pcs
2. Gross weight:11KGS 3.Size of carton: 58*44*23cm |
|
|
|
|
|
|
|
|
6. ADO LED Panel Light Advantages:
1. LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and
EMC certified.
2. The beam angle of led panel light is 180°.
3. Easy to install. Ideal to be built into system ceilings,
offices, and can be used as a suspended light fixture.
4. Innovated structure heating design.
5. Lock cable DC plug for led panel light.
6. Reflective area is larger with frameless design
7. ADO Lights Company Information:
1. 1000 kinds of LED lights for you to choose.
2. The products are exported to North America, South America,
Europe, Asia, Mid East.
3. Specializing in the production of LED panel lights, indoor and
outdoor lights for 5 years.
4. Advanced equipment,high technology,excellent R&D department
and strict quality-control system.
5. All products with certificate CE, ROHS, CCC.
