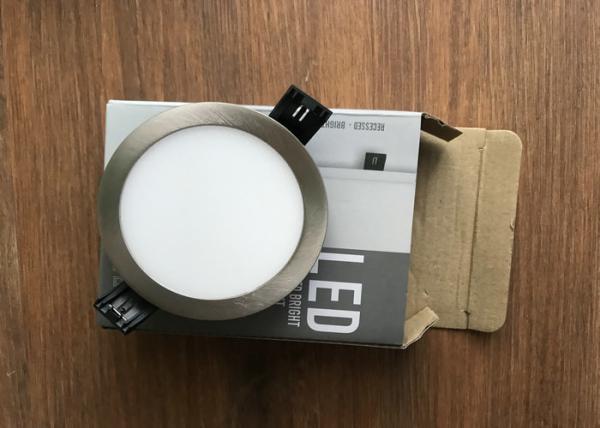

LED Slim Panel Light Recessed 6W Different Finish Color SMD2835
PMMA Aluminum
1. Description:
Recessed LED Slim Panel Light have round and square shape, power is
6w, 12w, 18w and 24w.

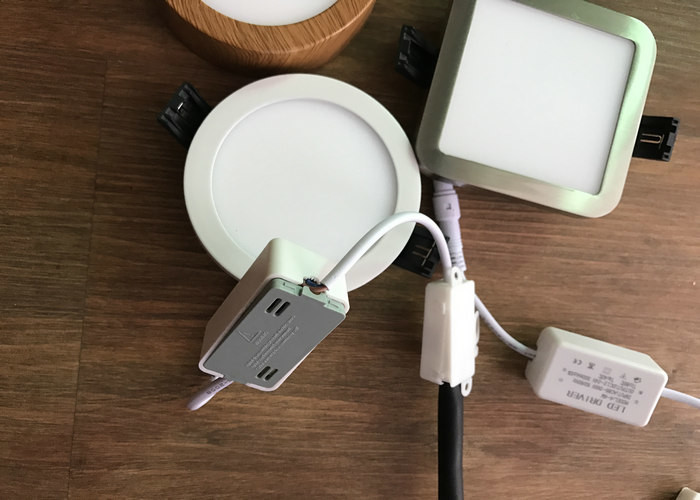

The led driver is an important part for our slim led panel light.
It is isolated, so it is safety. And IC constant current smart
project, stable and long life. Defective rate is very very low. The
led chip is SMD2835 with 0.2w, 24w light luminous efficiency is
90LM/W, total lumen is about 2160LM. And CRI is 80Ra to show
object's real color. The fixture color is white, can make
electroplating color, such as sliver, black, gold, wood and bronze.
This led slim panel light life span is 30000 hours, it is very
energy saving.
2. Model Specification:
| Power | Ring diameter | Hole size | LED
QTY | PCS/Carton |
| 6W | ¢90mm | Φ75mm | 30LED | 100 PCS |
| 9W | ¢120mm | Φ105mm | 45LED | 50 PCS |
| 12W | ¢145mm | Φ125mm | 60LED | 50 PCS |
| 18W | ¢175mm | Φ155mm | 90LED | 20 PCS |
| 24W | ¢225mm | Φ205mm | 120LED | 20 PCS |
3. Features:
(1) Ultra thin, good heat, long life, low cost of maintenance(2) 120 degree full light angle high lumen
(3) Energy-saving and environment-friendly Led Lamp
(4) Designed according to traditional Edison lamps plus led lights.
(5) High luminous flux can reach up to100lm/W.
(6) Wattge type: 6W / 9W/ 12W / 18W / 24W
(7) Dimmable type:dimmable/non-dimmable.
(8) High quality with CE,RoHS / TUV and other certificates.
(9) Long life time 30, 000 hours
4. Detailed Specification:
LED Chip: SMD2835
LED Brand: Epistar
LED lumen: 24-26LM
LED Power: 0.2W
Color Rendering Index: 80RA
CCT: 2700-3000K, 4000-4500K, 6000-6500K
LED Driver: Isolated wide voltage IC constant current driver
Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
IP rank: IP20
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Input Voltage: AC85-265V
Lumen: 80-90LM/W
Warranty: 2 years
Approval mark: CE RoHs
5. Electrical Parameters:
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H
6. Shipping:
| Samples shipping method | DHL Fedex UPS TNT EMS |
| Bulk order shipping method | By sea |
| Samples shipping time | 3-7 days |
| Bulk order shiping time | 30 days |
7. FAQ:
Q1: How do you guarantee your product quality?
A1: From material purchasing to production finishing, we have a
full set of strict inspection process to ensure exceptional quality
problem, including IQC, QC&A, OQC. Moreover, before production,
our technology department engineers will assess the production
process to ensure each process in the right way.
Q2. What is the type of your LED resources?
A3: We use Epistar SMD2835 for led light source with high
brightness and low decay, and SMD5050 for RGB led panel light.
Different color termperature for your option,such as
2700-3200K,4000-4500K,5000-5500K,6000-6500K. And led CRI is more
than 80, and beam angle is biger than 120°.
Q3: Can you offer cheap shipping cost to import to my country?
A:3 we have long-standing forwarder which can offer the most
competitive price for your reference. Normally, For small order,
express will be best .And for bulk order, it is better to by sea
but need much time.
