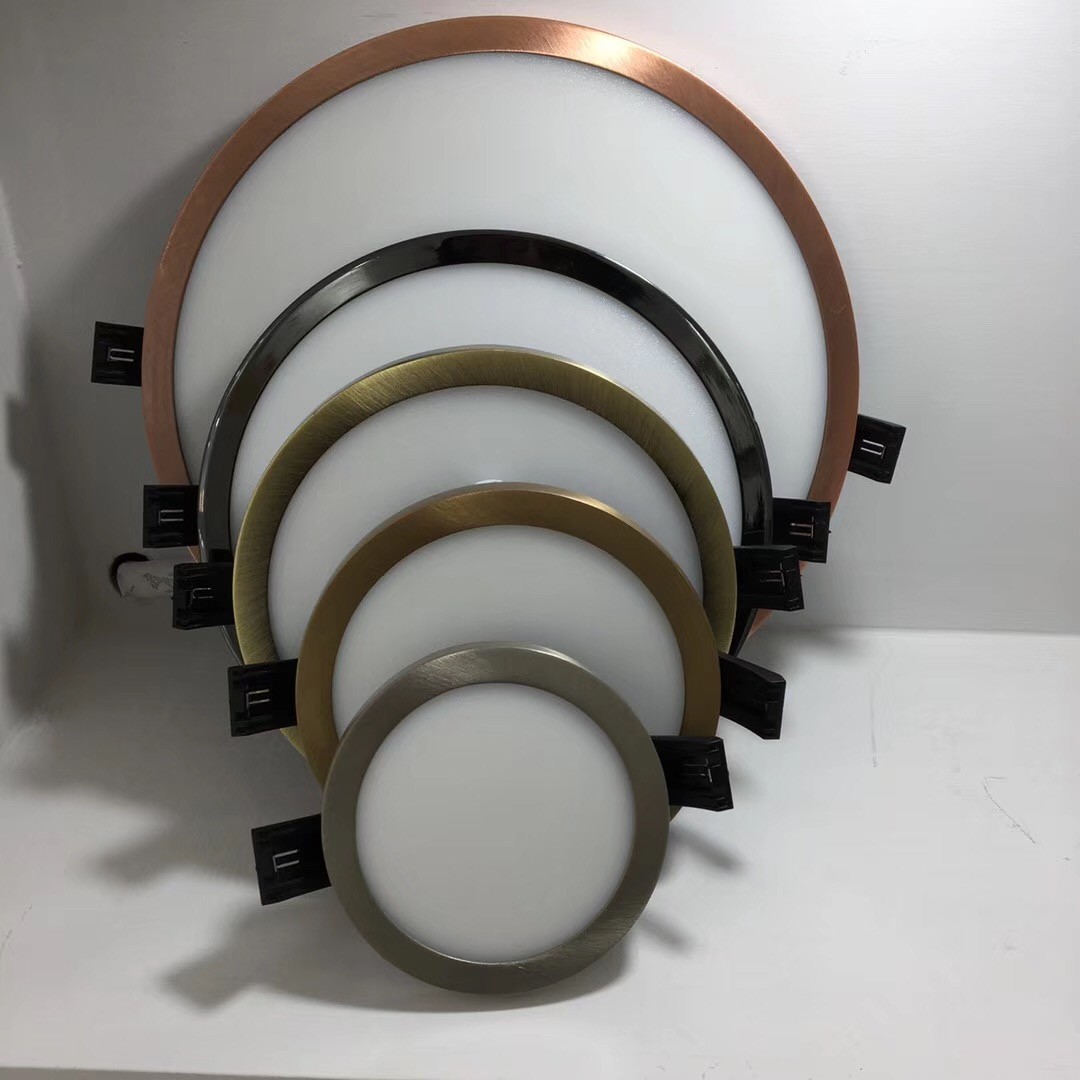

6W Triac dimmable led panel light chrom nickle white aluminum 500LM
3000K
1. Description:
Dimmable LED Panel Light now is used very widely, and the triac
dimmable led panel light is used more common. It is using a
dimmable led driver to make the panel light lamp's light brighness
can be adjusted by the original dimmer and switch. The led panel
light can be brighter or darker by the dimmer. Which is easy to
install, no need to change other wires. So the dimmable led driver
quality is very important, it is the key point to decide the led
panel light's quality and long life. Our Dimmable led panel light
is adopting high quality dimmable led driver, which can pass CE,
TUV and SAA.
2. Specification:
| Model | AD-EPR-PAL-6W | Beam Angle | 120 degree |
| Input Voltage | AC85-265V | LED Brand | Epistar |
| Power | 6W | LED Driver | Isolated IC driver |
| Dimension(L*D*H) | D90mm*H10mm | IP Grade | IP20 |
| Lumens | 500LM | Material | Aluminum+PC |
| LED chip | SMD2835*30pcs | Shape | Round/Square |
| CRI | 80Ra | Lifespan | 50000hours |
| CCT | CW NW WW | Certificate | CE RoHS |
| Finish | White/nickel/ chrom/wood | Warranty | 2 Years |
3. Advantages:
A. Long life span
B. Green environment
C. Energy Saving
E. High Brightness
F. Easy Installation
G. Top technology
H. High configuration
4. Parameter:
Model: AD-EPR-PAL-6W
Input Voltage: AC85-265V
Power: 6W
LED Brand: Taiwan Epistar
LED Chip: SMD2835
LED Type: 0.2W
LED Lumen: 24-26LM
LED Quantity:30pcs
CCT: 3000K / 4000K /6000K
Lumen: 450LM ± 100 LM
Color Rendering Index: 80RA
Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
IP rank: IP420
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Approval mark: CE RoHs
5. Electrical Parameters:
Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H
Size(mm): φ175*H8mm
Cutout size(mm): φ155mm
Input Voltage: AC85-265V 50/60Hz
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
6. Features:
(1) Ultra slim, good heat, long life, low cost of maintenance
(2) 120 degree full light angle high lumen
(3) Energy-saving and environment-friendly Led Lamp
(4) Intelligent constant current IC driver, stable project, long
lifespan ensurance
(5) Slim design, good looking, easy installation
(6) High quality with CE,RoHS / TUV and other certificates.
7. ADO Lights Company Information:
1. 1000 kinds of LED lights for you to choose.
2. The products are exported to North America, South America,
Europe, Asia, Mid East.
3. Specializing in the production of LED panel lights, indoor and
outdoor lights for 5 years.
4. Advanced equipment,high technology,excellent R&D department
and strict quality-control system.
5. All products with certificate CE, ROHS, CCC.
