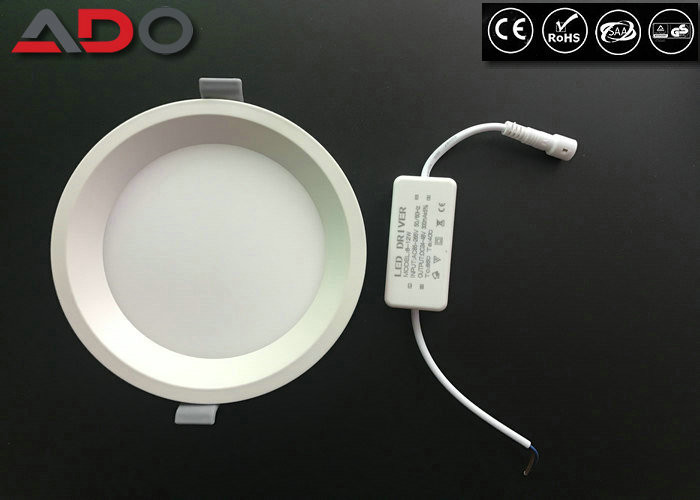

BackLit 12W Anti-Glare LED Panel Light 3000K Aluminum 80Ra 125mm
Round
1. BackLit 12w Anti-Glare LED Panel Light introduction:
LED Panel Lght normally have 2 different emitting, one is side
lighting, such as the slim led panel light, it is a flexiable led
strips around the aluminum inner housing ring.
Another is back lighting, it is our backlit anti-glare led panel
light. The led chips is on the aluminum PCB board, without the
light guide plate,
by using the light diffuser, the light lumious efficiency is much
higher that side lighting.
For example, 12w side lighting led panel light lumen is about
700-800LM, but back lighting led panel light lumen is about
840-960LM. Same power but higher lumen, which can save much energy
bill.
2. 12W Technical Data Sheet:
| Model | AD-AG-PAL-12W | Finish | White |
| Input Voltage | AC85-265V | Beam Angle | 120 degree |
| Power | 12W | LED Brand | Epistar |
| Dimension(L*D*H) | 145mm*145mm | LED Driver | Isolated IC Constant smart driver |
| Cutout Size | 125*125mm | IP Grade | IP20 |
| Lumens | 960LM | Material | Aluminum+PC |
| Luminous Flux | 80-90LM/W | Shape | Round |
| LED chip | SMD2835*60pcs | Installation | Recessed Mounted |
| CRI | 80Ra | Lifespan | 50000hours |
| CCT | 6500K 4000K 3000K | Certificate | CE RoHS |
| Finish | White | Warranty | 2 Years |
| Beam Angle | 120 degree | Market | Europe |
3. Application:
Our Anti-glare backlit led panel light can be widely used for many
different places. There are some application scenarios, they are:
1. Home Lighting: living room could choose 6500k, reading room
could choose 4000K, and 3000K for bedroom is nice.
2. Office Lighting: the meeting room and reception room can select
4000K or 6500K, 6500K will be much brighter.
3. Commercial Lighting: such as shop, supermarket, hospital, all
these commercial places can choose 6500K.
4. Features:
A. Long life span
B. Green environment
C. Energy Saving
D. High Brightness
E. Easy Installation
F. Top technology
G. High configuration
5. How to choose a right product:
To all customers who want to buy good quality led products, please
tell us your quality requirements, then we recommend the suitable
product for you from our website, because we have many different
types led panel lights, also many other series led lamps, indoor
lighting or outdoor lighting. Please feel free to contact us at any
time, we will do our best to meet your needs and reply you within
24 hours.
6. Trade Terms:
1. Sample can be delivered in 3 days
2. Private labeling and distributorships are offered.
3. Our own design and product development is without any patent
problem.
4. Payment: 30% deposits before production, 70% balance to be paid
before deliver
5. You are welcome to visit our lighting showroom and factory.
6. Discount are offer base on quantity.
