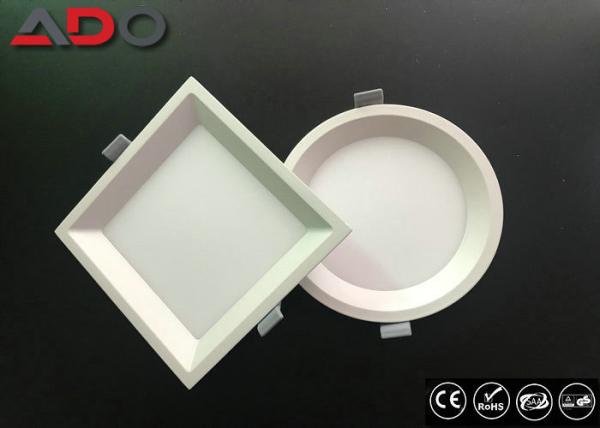

New 16w LED Panel Light Recessed Anti-Glare CE 2 Years Aluminum
155mm
1. Advantages:
1. This anti-glare led panel light use Epistar led chips SMD2835
which is from Taiwan. The lumen is 24-26LM, power is 0.2W. Whole
lamp lumen efficiency is about 80-90Lm/W, light is very soft and
uniform. The led chip CRI is more than 80ra, which can reflect the
objects true colors, and no glare at all. life span is more than
50000 hours.
2. The led driver is isolated IC constant current project, it is
very safe and intelligent. The voltage is from AC85-265V, which is
suitable for world's voltage, widely used for many different
countries. The led driver's quality is very improtant for a lamp's
quality. High quality led drivers can make the led lamps life span
is much longer than normal led driver.
2. Specification:
| Power | 5W | 9W | 12W | 16W | 22W |
| Shape | Round | Round | Round | Round | Round |
| Ring diameter | ¢90mm | ¢120mm | ¢140mm | ¢170mm | ¢220mm |
| Hole size | Φ75mm | Φ105mm | Φ125mm | Φ155mm | Φ205mm |
Color Temperature | warm white 3000K neutral white 4000K cool white 6500K |
| LED | SMD2835 |
| LED QTY | 25LED | 45LED | 60LED | 80LED | 110LED |
| PCS/Carton | 50 PCS | 50 PCS | 20 PCS | 20 PCS | 20 PCS |
| Carton Size (cm) | 60*20*25.5 | 75*20*31.5 | 35.5*20*34 | 41.5*20*40.5 | 51.5*20*50.5 |
| CBM/ CTN | 0.0306 | 0.04725 | 0.02414 | 0.033615 | 0.052015 |
3. Technical Data Sheet:
| Input Voltage | AC85-265V |
| Luminous Flux | 80-90LM/W |
| Finish | White |
| Beam Angle | 120 degree |
| LED Brand | Epistar |
| LED Driver | Isolated IC Constant smart driver |
| IP Grade | IP20 |
| Material | Aluminum+PC |
| Shape | Square |
| Installation | Recessed Mounted |
| Lifespan | 50000hours |
| Certificate | CE RoHS |
| Warranty | 2 Years |
| Market | Europe. USA |
| Finish | White |
| Beam Angle | 120 degree |
| CRI | 80Ra |
4. Customized service:
We peovide many different services which can meet customer's
different quality requirements.
1. LED Chips Brand: If you want to use Chinese San'an led chips or
imported Osram led chips or some other famous brands, all we can
provide for you. It is based on your needs, and the CRI such as
70Ra, 80Ra or 90Ra, and the luminous efficiency 80Lm/W, or 100LM/w,
these special requirements all can be customized according to your
request.
2. LED drivers Brand: Lifud led driver, led driver, or dimmable led
driver. we can change the drivers to meet different customer's high
qualiy needs, Lifud led driver will have 3 years warranty, led
driver can has 5 years warranty.
3. Customzied label / box / carton: For bulk order, some customers
need to use their own company logo, we can ask the paper printing
box factory to design the customized label(box, carton). small
quantity will cost some extra cost. Big quantity order could be
free charged.
5. Shipping:
We have rich experience of shipment, we will choose the best way
according to your demand
1. By sea is cheap but long time
2. By air is fast but expensive
3. By truck is the best choice for the city far away from port
4. By train is becoming more and more famous and it's taking place
of truck
