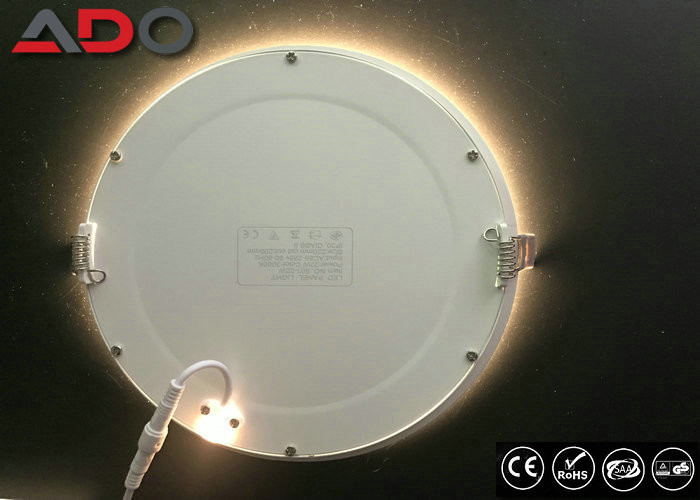

Embedded Dimmable LED Panel Light 6000K 16W 155mm CE Isolated
SMD2835
1. Application:
A. Conference / meeting room
B. Residential / Institution Buildings
C. Living Room / Dinning Room
D. Supermaket / Shop
2. Technical Data and Features:
| Power | 5W | 9W | 12W | 16W | 22W |
| Shape | Round | Round | Round | Round | Round |
| Ring diameter | ¢90mm | ¢120mm | ¢140mm | ¢170mm | ¢220mm |
| Hole size | Φ75mm | Φ105mm | Φ125mm | Φ155mm | Φ205mm |
| Color | warm white 3000K neutral white 4000K cool white 6500K |
|
| LED | SMD2835 |
| LED QTY | 25LED | 45LED | 60LED | 80LED | 110LED |
| PCS/Carton | 50 PCS | 50 PCS | 20 PCS | 20 PCS | 20 PCS |
| Carton Size (cm) | 60*20*25.5 | 75*20*31.5 | 35.5*20*34 | 41.5*20*40.5 | 51.5*20*50.5 |
| CBM/ CTN | 0.0306 | 0.04725 | 0.02414 | 0.033615 | 0.052015 |
| Anti-Glare LED Panel Light Features |
| Input Voltage | AC85-265V | Lifespan | 50000hours |
| Luminous Flux | 80-90LM/W | Certificate | CE RoHS |
| Finish | White | Warranty | 2 Years |
| Beam Angle | 120 degree | Market | Europe. USA |
| LED Brand | Epistar | Finish | White |
| LED Driver | Isolated IC Constant smart driver | Beam Angle | 120 degree |
| IP Grade | IP20 | CRI | 80Ra |
| Material | Aluminum+PC | Installation | Recessed Mounted |
3. Advantages:
(1) No flash, strobe and glare
(2) 120 degree full light angle high lumen
(3) Die-casting aluminum body with strip pattern provide better
effect for heat trasmitting
(4) CE RoHS SAA TUV
(5) High luminous flux can reach up to100lm/W.
(6) Wattge type: 5W / 9W / 12W / 16W / 22W
(7) Housing Color: white, black, bronze, golden, sliver
(8) Low power consumption
(9) Dimmable type:dimmable/non-dimmable.
4. Description:
1. This anti-glare led panel light use Epistar led chips SMD2835
which is from Taiwan. The lumen is 24-26LM, power is 0.2W. Whole
lamp lumen efficiency is about 80-90Lm/W, light is very soft and
uniform. The led chip CRI is more than 80ra, which can reflect the
objects true colors, and no glare at all. life span is more than
50000 hours.
2. The led driver is isolated IC constant current project, it is
very safe and intelligent. The voltage is from AC85-265V, which is
suitable for world's voltage, widely used for many different
countries. The led driver's quality is very improtant for a lamp's
quality. High quality led drivers can make the led lamps life span
is much longer than normal led driver.
3. It is recessed mounted installation, which is very easy to
replace the old panel light. Just to make sure the ceiling cutout
size is the same as ours. we have many different sizes, they are
75mm, 105m, 125mm, 155mm,175mm and 205mm, you could choose the size
which can meet your original cutout size. can met your diffferent
needs.
