F1 plus Series Integrated LED track light, Lifud driver TYF
Tri-color LED by DIP switch 90-120LM/W 80/90Ra track light
1. F1 plus Series Integrated LED track light Specification:
1. Body materials: ADC12 Die cast aluminum
2. CCT&CRI: 2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K,
Ra>80/90/97
3. Optics & Beam angle: Lens and Reflector, 15/24/38/60°
4. Size & Wattage: D62X160mm (10-20W), D75x170mm (20-30W),
D85x180mm (30-40W)
5. Track adapter: 2/3/4 wire 1 phase, 4/6 wire 3 phase
6. Dimmable solution: DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF
7. Finish color: Matt White, Matt Black, Matt Grey and other
customized color
8. Warranty: 5 years from the delivery time Lens version Reflector
version
9. Certificates: CE ROHS, SAA
2. F1 plus Series Integrated LED track light Techinical Data :
| Item No. | Wattage | LED brand | CCT | CRI | Efficency | Beam
angle | Track
adapter | Voltage | PF | Size |
| AD-TL-10W-F1-CCT | 10W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D62x160mm |
| AD-TL-15W-F1-CCT | 15W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D62x160mm |
| Item No. | Wattage | LED brand | CCT | CRI | Efficency | Beam
angle | Track
adapter | Voltage | PF | Size |
| AD-TL-20W-F1-CCT | 20W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D75x170mm |
| AD-TL-25W-F1-CCT | 25W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D75x170mm |
| AD-TL-30W-F1-CCT | 30W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D75x170mm |
| Item No. | Wattage | LED brand | CCT | CRI | Efficency | Beam
angle | Track
adapter | Voltage | PF | Size |
| ADTL-30W-F1-CCT | 30W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D85x180mm |
| AD-TL-35W-F1-CCT | 35W | TYF TW COB | 2700-6500K
3000-5000K | 80/90 | 90-120lm/W | 15/24/38/60° | 4 wire 3 phase | AC200-240V | >0.9 | D85x180mm |
3. Different Optics:
Both lens and reflectors are ok for this track light
Full beam angle:15/24/38/60°
80-140lm/W lumen output
4. Tri-Color By Switch: 3000/4000/5000K in one light
6. F1 series LED track light:
8. Installation Procedure:
9. Installation for track:
10. Applications:
1. Shopping malls (clothing stores, furniture stores and other
brand stores),
2. Car displays, jewelry, star hotels, branded apparel, high-end
clubs, museums, chain stores,
3. Brand business offices, professional windows, counters
11. Introduction:
This track light is an elegant design. High lumen COB chip and PMMA
lens and Aluminum reflflector offffer a uniform
lighting output. Die-casing aluminum lamp body provides excellent
heat dissipation.
Lens and reflflector design meet difffferent customer needs, and
creates a comfortable visual experience. Multiple
beam angle lens and reflflector optional,Easy installation,
recreational for various application.

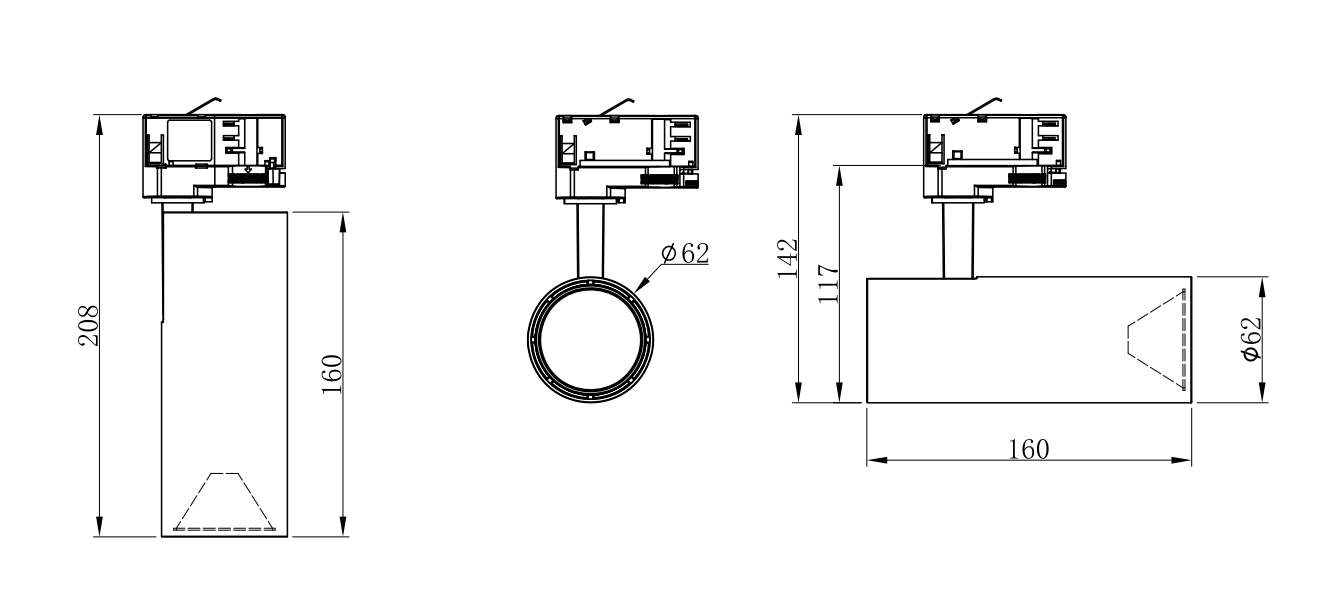

12. Mechanical drawing:
