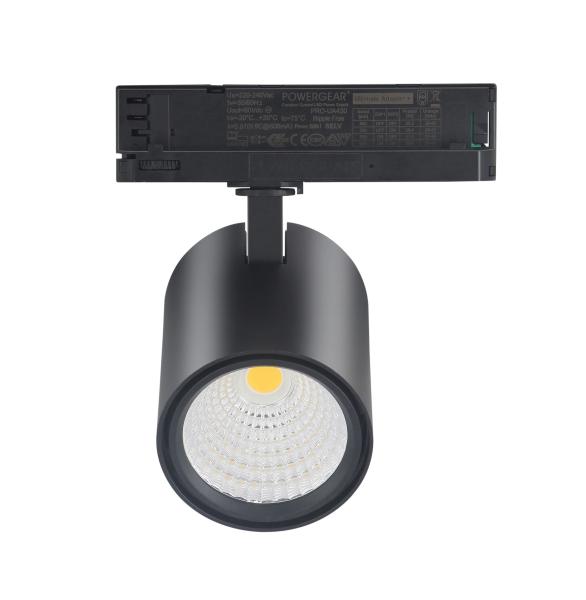

30W led track lights dimmable Non Flicker Dali Dimmable 3000LM 90Ra
Black 4000K 0.9PFC 5 years 38° indoor shop lighting
1. 30W led track lights dimmable Non Flicker Specification:
1. Body materials: ADC12 Die cast aluminum
2. CCT&CRI: 2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K,
Ra>80/90/97
3. Optics & Beam angle: Lens and Reflector, 15/24/38/60°
4. Size & Wattage: D62X140mm(10w, 15w), D90x108mm(20w, 25w, 30w),
D110x150mm(35w, 40w, 45w)
5. Track adapter: 2/3/4 wire 1 phase, 4/6 wire 3 phase
6. Dimmable solution: DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF
7. Finish color: Matt White, Matt Black, Matt Grey and other
customized color
8. Warranty: 5 years from the delivery time Lens version Reflector
version
9. Certificates: CE ROHS, SAA
2. LED track light Techinical Data :
| LED brand | Bridgelux COB | Driver brand | Power gear +Osram | Housing materials | Die-casting Aluminum Alloy | Driver in track |
| CCT | 2700/3000/4000K | Output Voltage | DC36V | IP Rating | IP44 | Powergear flicker free |
| CRI | 80/90/97 | Current | 700/750mA | Finish color | White / Black | Global flicker free |
| Lamp efficiency | 90-100lm/W @CRI80 /90/97 | Input Voltage | AC200-240V | THD | <15% | Lifud flicker free |
| Beam angle | 15°/24°/38°/60° | PF | >0.9 | Dimmable | Yes | Osram flicker free |
| Track adapter | 4-wire 3-phase | System wattage | 30.5W | Warranty | 5 years | Powergear TCI DALI |
3. LED track light heads 10W Bridgelux LED Chip 97Ra 100LM/W 4-wire
3-phase Introduction:
This track light is an elegant design. High lumen COB chip and PMMA
lens and Aluminum reflflector offffer a uniform
lighting output. Die-casing aluminum lamp body provides excellent
heat dissipation.
Lens and reflflector design meet difffferent customer needs, and
creates a comfortable visual experience. Multiple
beam angle lens and reflflector optional,Easy installation,
recreational for various application.
4. LED track light heads 10W Bridgelux LED Chip 97Ra 100LM/W 4-wire
3-phase Features:
-Lens & reflflector design.
-CRI 80/90/97Ra available.
-Modular lens and reflflector design: 15°/24°/38°/60°
-Flicker free internal driver.
-Dimming way: Non-dim, triac dim, DALI dim.
5. Packing Details:
| Code | Dimension(mm) | Size(mm) | Produce
Weight(kg) | Carton
Weight(kg) | Carton
Size | Qty/
CTN |
| A | B | C | N.W/ PC | G.W/ PC | N.W/ CTN | G.W/ CTN |
AD-TL-OR-10W | L140 | D62 | L160 | D62*L140 | 0.45 | 0.55 | 13.5 | 16.5 | 44*37*42 | 30 |
| AD-TL-OR-15W | L140 | D62 | L160 | D62*L140 | 0.45 | 0.55 | 13.5 | 16.5 | 44*37*42 | 30 |
| AD-TL-OR-20W | L108 | D90 | L160 | D90*L108 | 0.85 | 0.95 | 17 | 19 | 54*39*40 | 20 |
| AD-TL-OR-25W | L108 | D90 | L160 | D90*L108 | 0.85 | 0.95 | 17 | 19 | 54*39*40 | 20 |
| AD-TL-OR-30W | L108 | D90 | L160 | D90*L108 | 0.85 | 0.95 | 17 | 19 | 54*39*40 | 20 |
| AD-TL-OR-35W | L150 | D110 | L160 | D110*L150 | 1.07 | 1.17 | 17.12 | 18.72 | 59*43*40 | 16 |
| AD-TL-OR-40W | L150 | D110 | L160 | D110*L150 | 1.07 | 1.17 | 17.12 | 18.72 | 59*43*40 | 16 |
| AD-TL-OR-45W | L150 | D110 | L160 | D110*L150 | 1.07 | 1.17 | 17.12 | 18.72 | 59*43*40 | 16 |

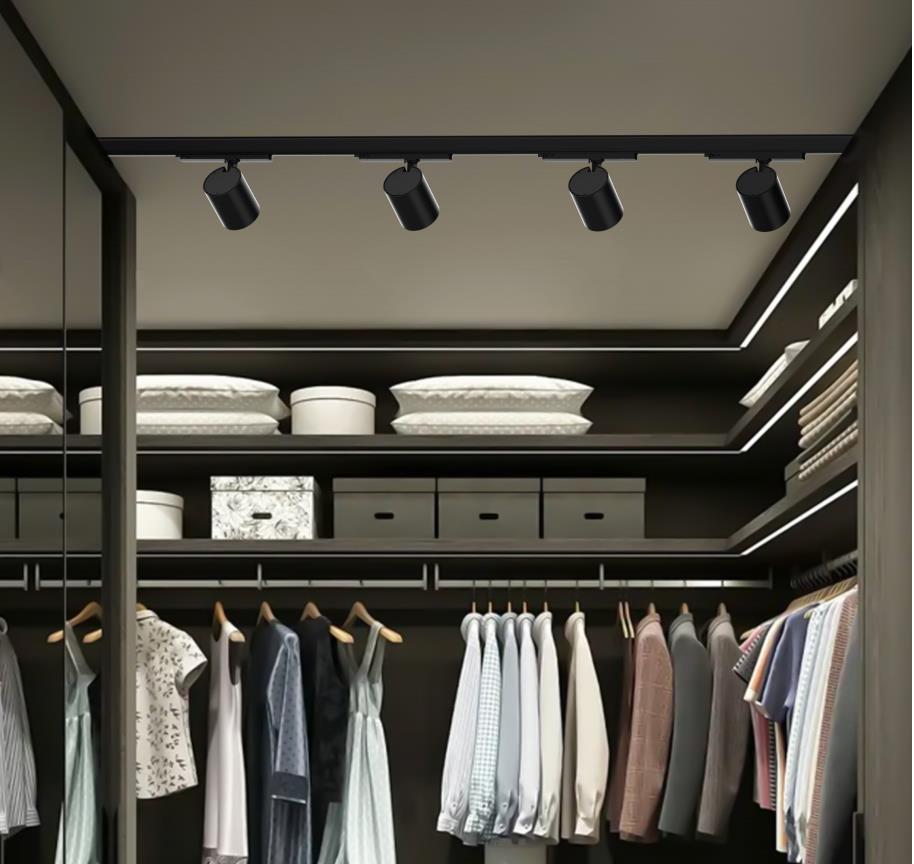

6. Application:
Applicable for residential lighting in bedroom, living room,
corridor etc, also suitable for commercial lighting in office,
hotel, restaurant etc.
7. Installation Procedure:
8. Dali Driver Installation:
9. Track installation:CEILING MOUNTED:
10. Mechanical drawing D60*H140mm:
11. Picures of LED Track Lights:
