Anti Glare Ceiling LED Panel Light 3 colors changing Ceiling
mounted 400mm 32W 3200LM IP42 80Ra built in driver
1. Anti Glare flat panel led ceiling light Optic&Electric Parameter :
| Power | 32W |
| Driver | Non-isolated,Constant current,Built-in |
| transfer efficiency | ≥0.92 |
| Input Voltage | AC85-277V 50/60Hz |
| Output | DC70-120V 200MA |
| Power Factor | ≥0.96 |
| LED Brand | SANAN 2835 |
| Color | 3000-6500K |
| Lighting Effect | ▲ 160-170LM/W |
| LED QTY | 140*2PCS |
| Luminous Flux | ▲ 3200-3400LM |
| Ra | ▲ ≥80 |
| Beam Angle | 120º |
| Operating Temperature | -40℃-50℃ |
| Theory of Lighting | LED Sidelit+LGP+Reflecting film |
| Whole Light Effect | ▲ 100LM/W |
2. Anti Glare flat panel led ceiling light Material& Physical Parameter:
| Material | ABS injection molding |
| Surface Treatment | Spray white/Sand black/Other |
| LGP | 3.0MM Nanometer |
| Diffuser Plate | 1.2MM PS |
| Light's Body | ▲ Mold injection molding |
| Material of bottom | ▲ ABS |
| Installation Way | Surface Ceiling/Suspension Wire |
| Smart Mode | Change color by dial color switch |
| Material of Strip Light | High thermal conductivity aluminum substrate |
| Product's Size | Φ400*25MM |
| Carton's Size | 41*33.5*42CM |
| Package Way | Natural Package/ Customize Package |
| N.W ( KGS) | 1.21kg |
| QTY/CTN | 10PCS |
| Certification | CE/CB/ROHS/EMC |
| IP Rating | IP42 |
3. Features:
1. 3 colors can be changed by dial color switch
2. 3 colors can be changed by dial wall switch
3. The sizes are: Φ230*25MM, Φ300*25MM, Φ400*25MM, Φ500*27MM,
Φ600*27MM, Φ750*27MM
4. 18w, other powers are 24w, 30w, 40w, 50w, and 70w.
5. The fixture color can be white and black.
6. The color temperature is 3000K-6500K.
7. Installation: can be surface mounted and suspended mounted.
4. Other Models:
| Model | Size(mm) | LED Chip | Lumen |
| AD-PL-2511-18W | Φ230*25MM | 81*2PCS SMD2835 | ±1800LM |
| AD-PAL66-B-24W | Φ300*25MM | 108*2PCS SMD2835 | ±2400LM/W |
| AD-PAL66-C-30W | Φ400*25MM | 140*2PCS SMD2835 | ±3000LM/W |
| AD-PAL312-B-40W | Φ500*27MM | 180*2PCS SMD2835 | ±4000LM/W |
| AD-PAL312-C-50W | Φ600*27MM | 208*2PCS SMD2835 | ±5000LM/W |
| AD-PAL612-B-70W | Φ750*27MM | 280*2PCS SMD2835 | ±7000LM/W |
5. Product Certifications:
1,Product Patent No.:ZL202130302456.X
2,TUV-CB Certification
3,TUV-CE Certification
4,ERP Certification
5,FCC Certification
6. Environmental Requirement:
| Storage Temperature | -40℃to+70℃ |
| Storage Humidity | 10%RH to80% RH |
| Working Temperature | -20℃to+40℃ |
| Working Humidity | 10%RH to90% RH |
7. Suspended Installation:
Install the hanging rope fixed base on the top plate of lamp body
suction, then install the top box of
building body suction, string the hanging rope into it.
8. Product detail display:

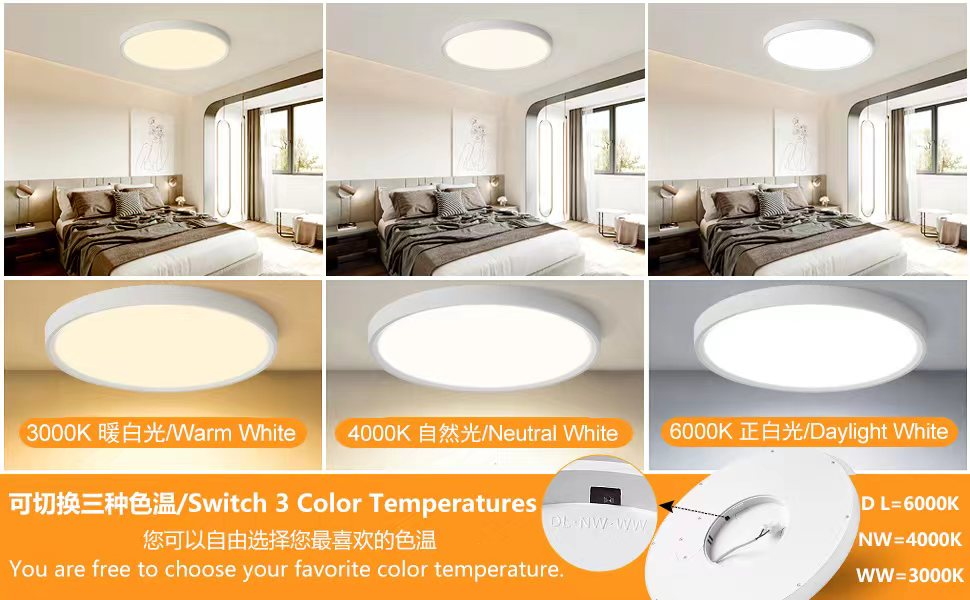

9. 3 Colors changing by dial colors switch :
The dial color switch is on the back side of the lamp, you are free
to change choose your favourite color
temeprature, the 3 colors are DL=6000K, NW=4000K, WW=3000K. It can
help you to save stock.
Also we can customize the model that control the 3 color
temperature by wall switch.

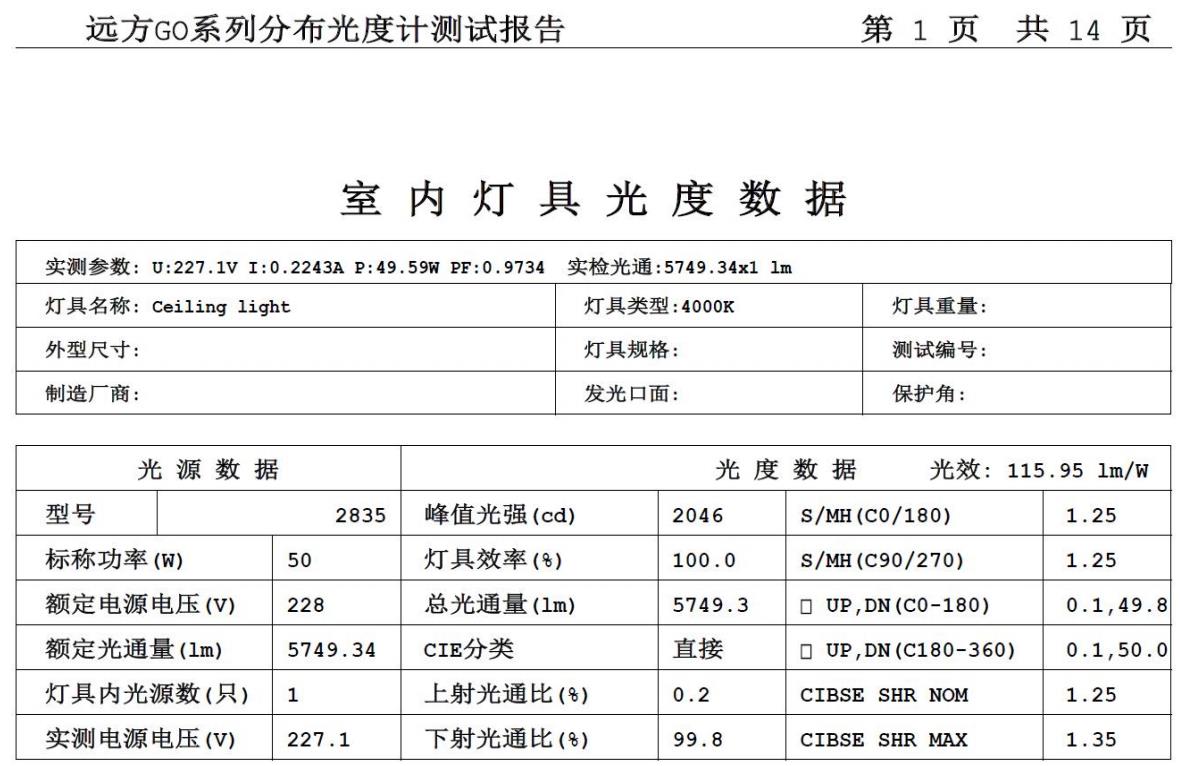

10. Optical Parameter Display
11. Size figures:
