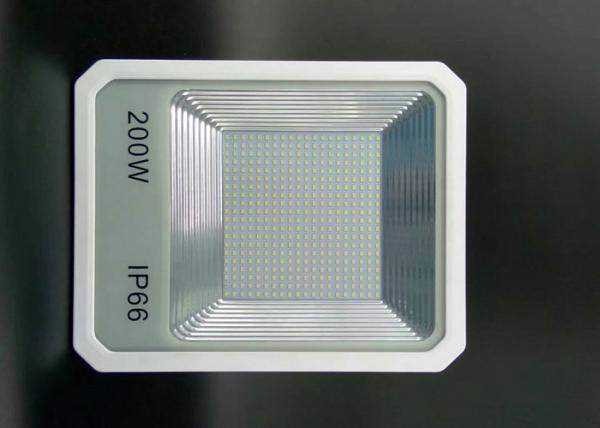

200W Waterproof LED Flood Light SMD5730 IP66 0.9PFC 80RA 30000Hours
4KV
1. Description:
This is our another design of waterproof led flood light, the
fixture color is white, material is aluminum.
The power is 10w, 20w, 30w, 50w, 100w, 150w and 200w. This design
also can make RGB type. The led chip is from SANAN SMD5730, one led
chip is 55lm with 0.5w, very high brightness. The CRI is up to
80Ra, and color temperature is WW 3000K, NW 4000K and CW 6000K. IP
grade is IP66, good waterproof technology, it pas 4kv surge, safety
product with 30000 hours long life span.
2. Technical Data:
| Item | AD-FLDM-100W | AD-FLDM-150W | AD-FLDM-200W |
| Wattage | 100W | 150W | 200W |
| Warranty | 2 Years | 2 Years | 2 Years |
| LED type | 5730 | 5730 | 5730 |
| Color temperature | WW NW CW | WW NW CW | WW NW CW |
| LED Chip Brand | SANAN | SANAN | SANAN |
| Life Time | 50000 H | 50000 H | 50000 H |
| PF | 0.95 | 0.95 | 0.95 |
| Voltage | AC85-265V | AC85-265V | AC85-265V |
| Housing material | Aluminium | Aluminium | Aluminium |
| Products size(CM) | 28.5*24*6 | 34.5*29.5*8 | 40.5*34.5*10cm |
3 Specification:
Input voltage: AC85-265V
Model: AD-FLDM-200W
Power: 200W
LED Quantity: 400pcs
LED Chip: SAN SMD5730
Lumen: 18000LM
CCT: 3000K / 4000K / 6500K
CRI: 80RA
Beam Angle: 120°
Power factor: ≥55%
Shell material: aluminum + tempered glass
LED Driver: CE / TUV / SAA driver
Shell color: black
IP rating: IP66
Warranty: 2 years
Place of Origin: China
Certificate: CE RoHs
4. Application:
Waterproof LED Flood Light could be used for outdoor lighting, it
is used very widely, football field, large-area work sites and
mines, building outlines, stadiums, overpasses, monuments, parks,
and flower beds.
5. Features:
A: Great energy-saving effect, save energy by over 70% comparing
with traditional lamps
B: Ultra thin, good heat, long life, low cost of maintenance
C: 120 degree full light beam angle with high brightness
D: No radiation, no any mercury and other harmful materials
E: Long lifespan up to 30,000hours.
F: Widely used for outdoor and indoor lighting
6. Trade Terms:
1.Normal lead time: 7days for sample order;15 days for production
order
2.Payment: T/T, L/C, Bank transfer, Western Union, Paypal, Escrow
is acceptance.
3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is
available
4.Shipping port: Guangzhou/ ShenZhen/ ZhongShan, Mainland China.
5.Discounts are offered based on order quantities.
6.Payment condition: 30% before production, 70% before delivery.
7. FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than 1000pcs.
Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q5: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution
including re-call according to real situation.
