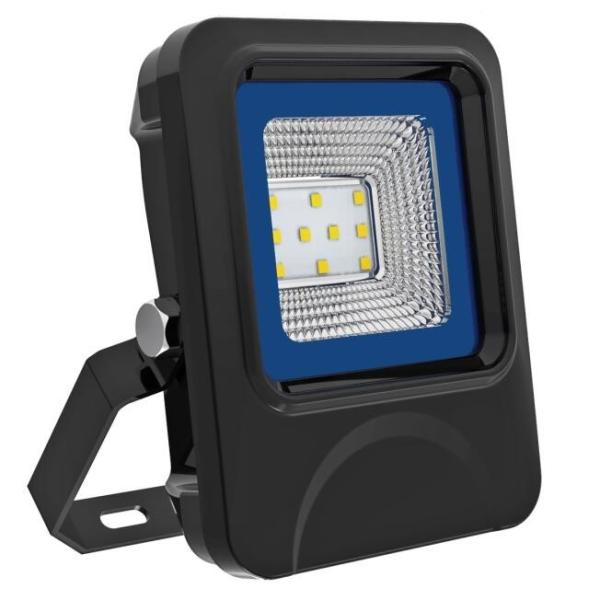

10 Watt Waterproof led flood lights high quality 6000K 80Ra Waterproof Driver SMD3030

1. Description:

A. It use high quality led chip(Taiwan Epistar/American Bridgelux/Osram) with high light luminous efficiency and low light decay.

B. The driver is wide volatge isolated high PFC IC constant current waterproof driver, also we could use SAA/TUV/CE driver if you need.

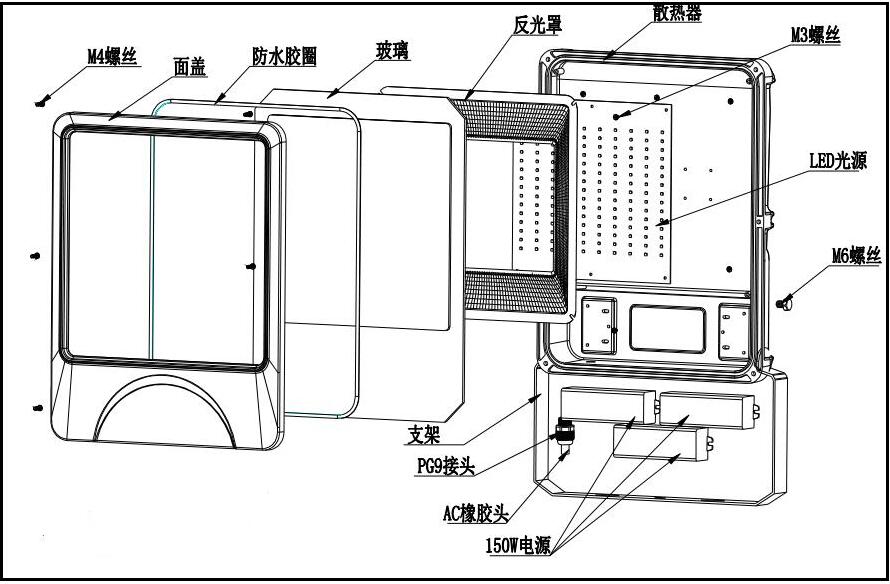

C. The housing material is die casting aluminum, fin heat-dissipasion design, and it is the popular ultra thin integrated housing design, makes products looks more nicer.

D. Double waterproofs IP66+Rust-proof sunken screw hole+ Strengthened curved holder, these parts improve led flood light overall quality level.

2. Technical datas

3. Advantages:

A. High luminous efficiency of SMD2835/5730 led chip, 0.5W/pcs

B. Very stable quality of smart IC, high PFC, long life span

C. Thick die casting aluminum radiator, better for heat dissipation

D. Available wattage: 10w/20w/30w/50w/70w/100w/150w

E. Lamp surface treated with anodization, corrosion-resistant

F. Long lighting distance and wide lighting areas

G. Wide input voltage AC85-265V

H. 3 years quality warranty

4. Features:

A: Great energy-saving effect, save energy by over 70% comparing with traditional lamps

B: Ultra thin, good heat, long life, low cost of maintenance

C: 120 degree full light beam angle with high brightness

D: No radiation, no any mercury and other harmful materials

E: Long lifespan up to 30,000hours.

F: Widely used for outdoor and indoor lighting

5. Application:

A. Public square Lighting Area

B. Warehouse Lighting Area

C. Stadium Lighting Area

D. Plant Lighting Area

E. Stage Lighting Area

6. Installation Instructions:

(1) Before the LED flood light installation: firstly, must cut off the power supply. This is the first step in the

installation of electrical equipment, and is the basis for safe operation.

(2) Secondly, please check the power supply is DC or AC power supply.

(3) To put the led flood light on the wall or on the ground, and make a hole drilling on the wall/ground with

expansion screws, then install the lamp, locked with screws. The mounting distance between the lamps is

determined according to the customer’s request.

(4) Connecting wires method(brown connect to live wire, blue to neutral wire, yellow to earth wire, please

try to connect the earth wire to prevent the lamp shell with static electricity.

(5) After the finish of installation, just open the swith, then can be used.

7. Maintenance Instructions:

1. Please make sure that the power has been cut off before maintenance.

2. Regularly clean the glass of the lamps to keep the light transmittance of the led flood light.

3. The dust of the shell and the heat sink of the lamps need to be cleaned regularly to keep good heat

dissipation.

4. Do not use water or strong corrosive solution for cleaning, preferably with a dry cloth

8. Product Warranty Term:

Our product warranty is 3 years, under normal use conditions, our led lamps quality assurance is based on the product's correct installation, use and maintenance; due to improper installation, use and maintenance of products, and the product damage, does not belong to the scope of the guarantee period, the company will choose repair, replacement (parts) or replacement of new products, etc. Exceeding the quality guarantee period will be appropriate charged for materials and labor costs.
