48Watt Flat LED Panel Light 2ft Waterproof 4500LM Aluminum White
90Ra Recessed
1. Technical Data Sheet:
| Wattage | 48W | Warranty | 3 years |
| Model | AD-PAL66-48W | CCT | 6000K |
| Voltage | AC85-265V | IP Ranking | IP65 |
| Dimension | 300*1200mm | Material | Aluminum |
| Luminous Efficiency | 100lm/W | LGP | PMMA 3mm |
| CRI | ≧80Ra | Beam Angle | 120 degree |
| PF | ≥0.9 | Installation | Recessed |
| LED Brand | Epistar | Dimmable | No |
| LED | SMD2835 | Fixture color | Sliver |
| Driver | Isolated IC Constant Current | LifeSpan | 30,000 hours |
2. Description:
Ado Flat LED Panel Light pass many certificates, they are CE, RoHS,
TUV, SAA, UL certificates, our customers are from Europe and North
America. The great advantages of our flat panel light is using
Japan
Mitsubishi Light Guide Plate, the material is PMMA, thickness is
3mm, technology is laser dot. This LGP can bring 90% light
transmittance and improve the light luminous efficiency. And there
is no dark area from the lighting effect, light looks very soft and
uniform.
3. Advantages:
1. Adopt Epistar SMD4014 LED chips, low light decay, high
brightness; Using solid state and free maintenance LED source, fast
start and long life span.
2. Recessed, surface mounted and suspended installation are
available.
3. Adopt external IC constant-current isolation waterproof led
driver, long lifetime and high efficiency.
4. The radiator use special slim design and process, ensure the
best heat sink cooling.
5. World wide using input voltage AC85-265V,50-60Hz.
6. Panel light is easy to Installation, high light intensity, beam
far distant, uniform light
7. Green enviromental and energy saving

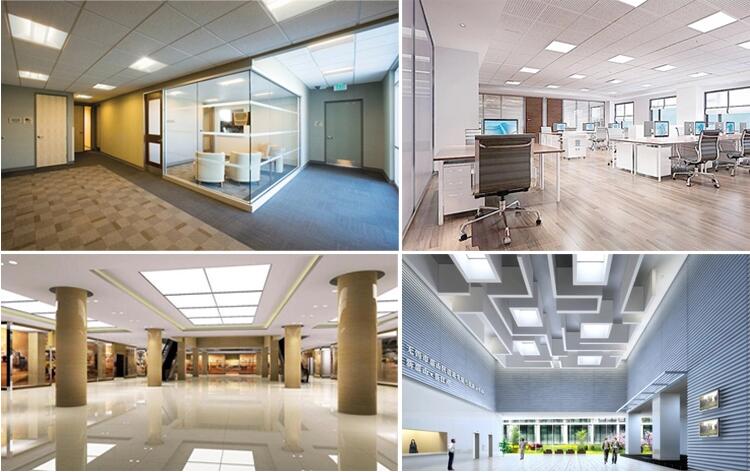

4. Application:
Flat led panel light is used in stage, bar, hotel, disco,
restaurants, cafe, club, shop, exhibition hall, art gallery, museum
and other environmental decorative lighting.
5. More Options:
| Model | Size |
| AD-PAL33-12W | 300*300mm*11mm |
| AD-PAL33-18W | 300*300mm*11mm |
| AD-PAL36-18W | 300*600mm*11mm |
| AD-PAL36-24W | 300*600mm*11mm |
| AD-PAL66-36W | 600*600mm*11mm |
| AD-PAL66-48W | 600*600mm*11mm |
| AD-PAL312-48W | 300*1200mm*11mm |
6. Features:
1: Luminous efficiency is up to 100LM/W
2. CRI could be 90Ra
3. Waterproof IP65 could be used for outdoor lighting
4. Color temperature could be 3000K, 4000K, 6000K and RGB.
5. Dimmable to change from bright to dark
6. Color changing could be 3000k to 4000K, and 4000k to 6000K.
7. 3 years warranty for quality ensurance
7. Why Choose Ado Lighting:
1. High and Steady Quality
2.Very Favorable and Attractive Price
3. Small Quantity allowed (Trial Order Also Welcomed)
4. 100% New Products
5. Large Stocks (Stable Supply Ability)
7. All kinds of car accessory for your choice
8. Fast Delivery
9. Good after-sales Service
10. 3 years warranty with free replacement
