LED Slim Panel Light 18w Surface Mounted Black IC Isolated SMD2835
90LM/W
1. Description:

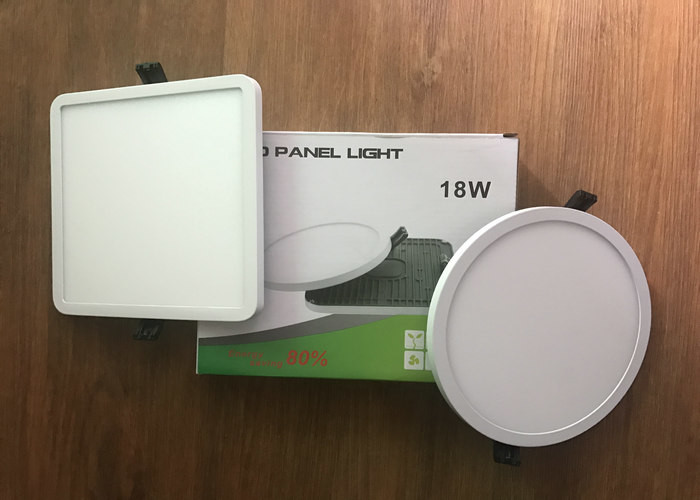

Surface Mounted LED Slim Panel Light have round and square shape,
power is 6w, 12w, 18w and 24w.
The led driver is an important part for our slim led panel light.
It is isolated, so it is safety. And IC constant current smart
project, stable and long life. Defective rate is very very low. The
led chip is SMD2835 with 0.2w, 24w light luminous efficiency is
90LM/W, total lumen is about 2160LM. And CRI is 80Ra to show
object's real color. The fixture color is white, can make
electroplating color, such as sliver, black, gold, wood and bronze.
This led slim panel light life span is 30000 hours, it is very
energy saving.
2. Detailed Specification:
Size(D*H): 175*8mm
Cutout size: 155mm
Color Rendering Index: 80RA
Material: Aluminum(fixture)+PMMA(LGP)
Beam angle: 120°
IP rank: IP20
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Input Voltage: AC85-265V
Model: AD-EPR-PAL-18W
Lumen: 1550LM ± 100 LM
Warranty: 2 years
Approval mark: CE RoHs
3. Electrical Parameters:
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
Light guide plate(LGP) brand:Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan: (LM80) 30000H
4. LED Chip Information:
| LED Chip | SMD2835 |
| LED Type | 0.2W |
| LED Lumen | 24-26LM |
| LED Quantity | 90pcs |
| Power | 18W |
| LED Brand | Taiwan Epistar |
| CCT | 3000K / 4000K / 6000K |
5. Installation:
1. This products can be only used in indoor.
2. Cutout of the ceiling should be the same as the lamp.
3. Connect the DC connectors with the lamp and the driver.
4. Insert the pinch to the ceiling, make sure it is fastened.
6. Features:
(1) Ultra thin, good heat, long life, low cost of maintenance(2) 120 degree full light angle high lumen
(3) Energy-saving and environment-friendly Led Lamp
(4) Designed according to traditional Edison lamps plus led lights.
(5) High luminous flux can reach up to100lm/W.
(6) Wattge type: 6W / 12W / 18W / 24W
(7) Dimmable type:dimmable/non-dimmable.
(8) High quality with CE,RoHS / TUV and other certificates.
(9) Long life time 30, 000 hours
7. Shipping:
| Samples shipping method | DHL Fedex UPS TNT EMS |
| Bulk order shipping method | By sea |
| Samples shipping time | 3-7 days |
| Bulk order shiping time | 30 days |
8. Why Choose ADO LED Slim Panel Light?
1. CE, RoHS, certified LED lights manufacturer
2. Large stock of led chips, led driver and LGP material
3. Short production lead time, fast delivery, discounted DHL/UPS
freight
4. Favorable price as PO qty increase
5. Excellent sales team providing on-time service
6. Strong R&D team with strength to develop new products every
month
7. 6 years LED Lighting experience
8. 3 Year Quality Warranty with good after-sales services
