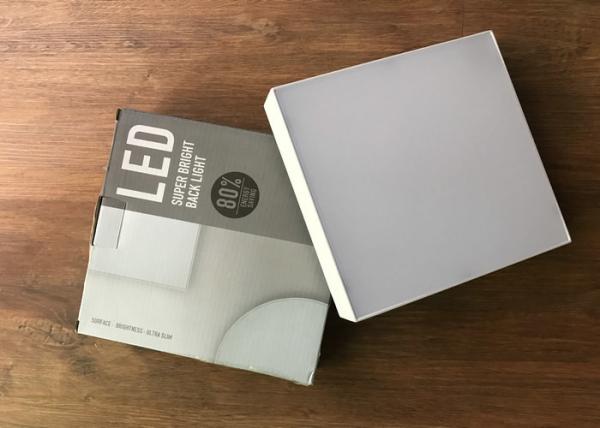

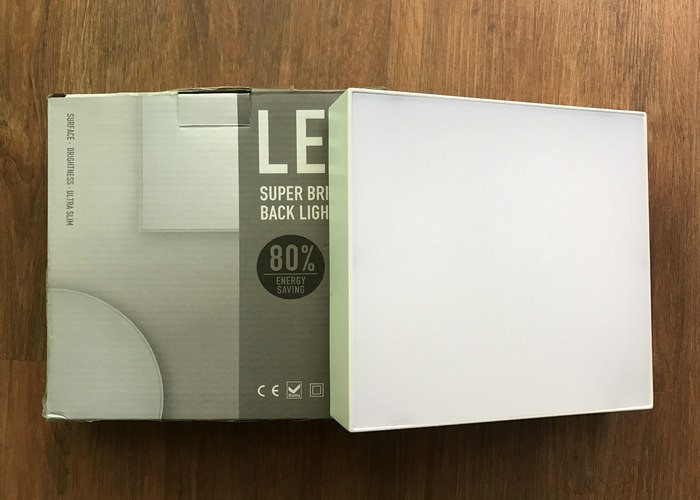

LED Slim Panel Light 30Watt Rimless Back Lighting Isolated Driver
0.9PFC 80Ra 4000K
1. 30W LED Slim Panel Light Specification:
| Model | AD-RL-SPAL-30W |
| Shape | Square |
| Installation | Surface Mounted |
| Emitting | Back Lighting |
| Power | 30W |
| CCT | 3000K, 4000K, 6500K |
| Input Voltage | AC85-265V |
| Luminous Efficiency | 80LM/W |
| LED Brand | Taiwan Epistar |
| Lumen | 2000LM ± 50 LM |
| Color Rendering Index | 80RA |
| LED Chip | SMD2835*240LEDS |
| Diameter | 225mm |
| Height | 35mm |
| Material | Aluminum(fixture)+PMMA(LGP) |
| Beam angle | 120° |
| Operation temperature | -20℃~+60℃ |
| Mounting height | 1-4 meters |
| Lighting Distance | 2-3meters |
| Warranty | 2 years |
| IP rank | IP20 |
| Certificate | CE RohS |
2. 16w, 24w and 30w led slim panel light specification:
| Model | AD-RL-SPAL-16w | AD-RL-SPAL-24w | AD-RL-SPAL-30w |
| Power | 16W | 24W | 30W |
| Size | ¢120*120mm | ¢175*175mm | ¢225*225mm |
| Height | 35mm | 35mm | 35mm |
| LED Chip | 90LED*SMD2835 | 168LED*SMD2835 | 240LED*SMD2835 |
| Feature | 1. Isolated wide voltage Driver
2.CRI: ≥80
3.Light Efficary: ≥80LM/W
4.warranty: 2 years
5.Ordinary color packaging 6. Shape: Square |
3. Description:
This LED Slim Panel Light housing is rimless, the rim/outer ring is
only 1mm aluminum material, makes the lighting area is much bigger,
can bring more light. Also the emitting mode is back lighting, not
side lighting. The installation is surface mounted. We have round
and square, power is 16w, 24w and 30w. size is 120mm, 175mm and
225mm. Height is 35mm. LED Chip is SMD2835 from Epistar, high lumen
with high brighness. LED Driver is wide voltage isolated IC
constant current project, it is long life and safety.
4. Application:
1. Office Lighting, Retail & Grocery Stores, Showrooms, Airports
2. Institution buildings, Super market Lighting
3. Commercial Lighting, Restaurants & Hotels, Shopping malls
4. Hospitals, Warehouses, Warehouse Lighting, Galleries
5. Advantages:
1. Thick housing, means better heat dissipation, means chip has
long lifespan
2. Lifetime more than 50000hrs, providing 3 years warranty.
3. High lumen 80lm per watt ,low light decay.
4. High light transmittance>90% ,more soft light.
5. Saving 80% electricity than ordinary panel lights.
6. Certificates:CE Rosh EMC LVD
6. Packing Information:
| Power | PCS/Carton | Carton Size (CM) | CBM/ CTN |
| 16w | 50 PCS | 27.5*27.5*46 | 0.0347875 |
| 24w | 20 PCS | 38*38*23.5 | 0.033934 |
| 30w | 20 PCS | 48*48*23.5 | 0.054144 |
7. Quality Control Capacity:
A. QC Team: 8 persons.
B. Integrated QC system is implemented in every aspect of
production for 4 times strictly check. Raw materials-during
productive process-finished products-after aging before pack( one
by one)
C. More than 200square meters aging room for each goods aging
24hours
8. Why Choose Ado Lighting company?
1. Professional sales team and workers and engineers
2. Rich Experiences: 5 years' research and development in LED
lighting;
3. Good Quality control: ISO9000 quality system and IBM internal
quality system are carried out in the factory.
4. Warm Services: Mothly and annual follow-up for your order and
solve problems
5. First-class Equipments: Dust-free workshop, and top optical lab
for LED lamps test.
6. OEM & ODM services: Your logo on the product and packing as well
as customized design can be acceptable.
7. 2 years and 3 years warranty and 5 years warranty for led
lights.
