Rimless led silm panel light 12w 18w 24w 36w 6000K recessed back
lighting
1. Description:

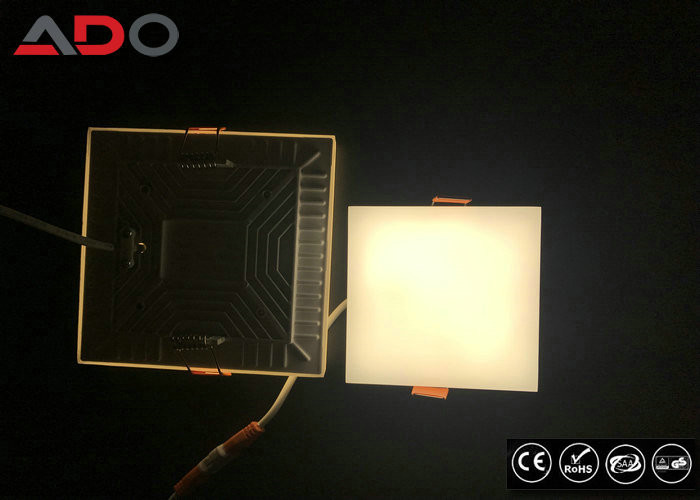

Rimless led panel light is our newest product for our customer who
need creative product. There are several difference:
1. The outter housing is PC diffuser, no aluminum outter ring, so
we call "rimless". which makes the lighting area is more bigger
than ordinary panel light. The lighting area is 100%, more light
can be came out from this new rimless led panel light.
2. The emitting mode is back lighting, no the same as traditional
side lighting, back lighting mode can generate higher luminous
efficiency.
3. The power range is 12w, 18w, 24w and 36w. More optional for you
to choose.
4. This product is for Europe market, South American, and Middle
East countries.
2. Specification:
| Model | Shape | Emitting | Size(D*H) | Cutout | Total
Lumen | LED Type |
| AD-RM-RL-PAL-12W | Round | Back
Lighting | Φ90*H16mm | Φ70mm | ±1320LM | SMD2835*84PCS |
| AD-RM-RL-PAL-18W | Φ120*H16mm | Φ105mm | ±1980LM | SMD2835*144PCS |
| AD-RM-RL-PAL-24W | Φ170*H16mm | Φ155mm | ±2540LM | SMD2835*240PCS |
| AD-RM-RL-PAL-36W | Φ225*H17mm | Φ205mm | ±3520LM | SMD2835*360PCS |
| AD-RM-RL-SPAL-12W | Square | 90*90*H16mm | 70*70mm | ±1320LM | SMD2835*96PCS |
| AD-RM-RL-SPAL-18W | 120*120*H16mm | 105*105mm | ±1980LM | SMD2835*162PCS |
| AD-RM-RL-SPAL-24W | 170*170*H16mm | 155*155mm | ±2540LM | SMD2835*264PCS |
| AD-RM-RL-SPAL-36W | 225*225*H17mm | 205*205mm | ±3520LM | SMD2835*396PCS |
3. Details:
1. Voltage is AC85-265V for world's standard voltage.
2. LED Brand is from Taiwan famous Epistar band.
3. LED Chip is SMD2835, each chip lumen is 26-28LM, power is 0.2w.
4. CRI>80RA which can see the objects real color
5. CCT could be selected from warm white 3000K, neutral white
4000K, and cool white 6000K.
6. Luminous efficiency is up to 95-110LM/W, it is higher than
common products.
7. Material: Aluminum+PC Diffuser, back side is aluminum, front
side is PC.
8. LED Driver project is Isolated IC constant current with wide
voltage, stable and long life.
9. We provide 2 years warranty for this new rimless led panel
light, any defective products during warranty period can be
exchanged.
10.This panel light led installation is very easy, it is recessed
mounted like the common slim led panel light.
4. Caution:
1. Confirm that this product is no damage during he transportation
before using
2. Put away from the children, prevent the accessories causing some
damage to the children. Don’t let the children touch the lamp when
it is working.
3. No anything else covering the products.
4. Only professional person can repair or tear down this products.
We have the authority to refuse giving any warranty to the products
which are repaired without our instruction.
5. Before cleaning the lamps, please switch off thr power, using
dry cloth to clean and don’t use any chemical or corrosive material
