24Watt Dali Dimmable LED Panel Light 225mm Surface Mounted Sliver
100LM/W
1. Description:
We have 3 different dimmable version led panel light, they are
triac dimmable, 0-10V dimmable, and Dali dimmable. DALI full name:
Digital Addressable Lighting Interface.

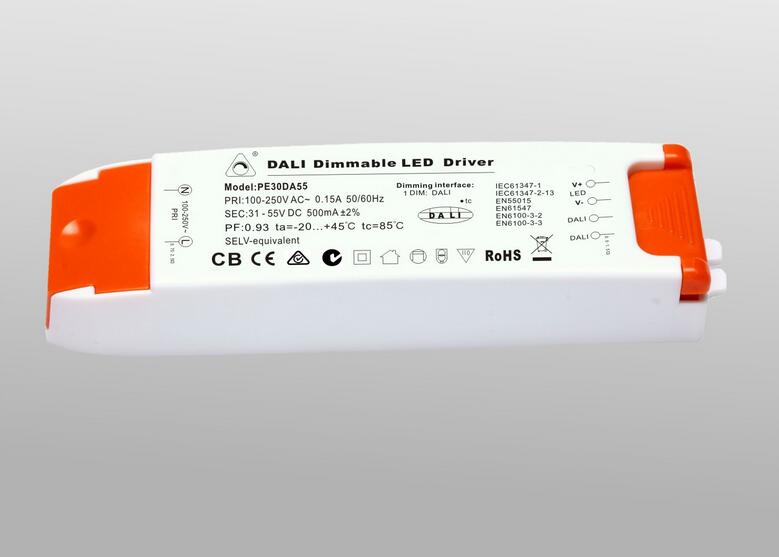

Dali dimmable led driver is a high power factor, high efficiency,
high precision LED constant current dimming driving power, using
the United States efficient, stable, low loss switch control chip,
using high-performance components, with low noise, Energy saving,
environmental protection, long life and other characteristics. And
adopt active PFC scheme, high power factor and high efficiency. it
use standard DALI signal interface, it can match all DALI control
systems on the market.
2. Parameters:
Light guide plate(LGP) brand: Japan Mitsubishi
LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%
Lifespan (LM80): 30000H
Size(mm): φ225*H30mm
Input Voltage: AC85-265V 50/60Hz
Power factor: PF≧0.9
Driver :Smart IC Isolated constant current
Rated lifetime: 50.000 hours
Insulation grade: II
Energy-saving level: A PLUS
Operation temperature: -20℃~+60℃
Lighting Distance: 1-4meters
Mounting height: 2-3meters
Place of Origin: China
Approval mark: CE RoHs
Warranty:2 years
3. Advantages:
A. Important advantages of this led panel light is that the housing
edge is very narrow, it makes the lighting area is bigger than old
panel light, the lighting area is more than 90%, then lighting
brightness is high. Also lamp total luminous efficiency is better.
B. This Sim LED Panel Light housing color is white, material is
die-casting material. The housing color also can be electroplating
color, such as gold, black, sliver, bronze, nickel and chrome.
C. The Light Guide Plate (LGP) use PMMA material, lighting
transmittance is up to 92%, and the light is very soft and uniform,
good for eyes.
4. Specification:
Model: AD-EPS-PAL-24W
Input Voltage: AC85-265V
Power: 24W
LED Brand: Taiwan Epistar
LED Chip: SMD2835
LED Type: 0.2W
LED Lumen: 24-26LM
LED Quantity:120pcs
CCT: 3000K / 4000K /6000K
Lumen: 2000LM ± 100 LM
Color Rendering Index: 80RA
5. Features:
1. High light transmittance>90% ,more soft light
2. High quality with CE,RoHS / TUV and other certificates.
3. Instant start,no flashing
4. High luminous flux can reach up to100lm/W.
5. No mercury or other hazardous materials, accord with RoHs.
6. Dimmable type:dimmable/non-dimmable.
6. More Optical Choices:
1. Powers: 6w 12w 18w 24w
2. Shape: square or round
3. Dimmable / Non-dimmable
4. Housing Color: White / Black / Chrome / Nickel / Bronze
5. Size: 90mm 145mm 175mm 225mm
7. 6W Packing Information:
Packing Size: 65*20*34cm
Packing Qty: 100pcs
Packing Net Weight:14.3kg
Packing Gross Weight:15.8kg
8. Trade Term:
| MOQ | 100pcs |
| Price | EXW factory |
| Payment method | Paypal/TT/Western Union |
| Payment term | 30% deposit after order confirmation, 70% before shipment |
| Delivery time | 3 days for samples, 7-15days for bulk order |
| Shipment | sample by DHL(3-4days), bulk order by sea(about 30days) |
| Valid date | 30 days |
