Dimmable Frameless LED Panel Light 24w 4000K 2400LM Aluminum Back
Lighting
1. Frame-less LED Slim Panel Light Technical Data:
| Item | LED PANEL LIGHT |
| Product Number | AD-ARL-SPAL-12W |
| Light Source | LED SMD2835, 0.2W, 24-26LM, 84leds |
| Power | 12W |
| Luminous Flux | 110LM/W |
| Input | AC85-265V |
| Color Temperature | 3000-3500K / 4000-4500K /6000-6500K |
| Dimming | No |
| Working Temperature | 55 degrees Celsius at room temperature 25 degree Celsius |
| Color Rendering Index | CRI > 80 |
| Beam Angle | 180 degree |
| Dimension | D90*H20mm |
| Cutout Size | D70mm |
| Material | Aluminum Alloy(back side)+PC(front side) |
| Surface Finish | White |
| LED Driver | Wide voltage IC constant current |
| Package | Stardard packing box |
| Installation | Recessed |
| Emitting | Back Lighting |
| Certification | CE ROHS |
| Warranty | 2 years |
2. ADO LED Panel Light Advantages:
1. Patented flame design, streamlined structure, exquisite
finishing, small and exquisite.

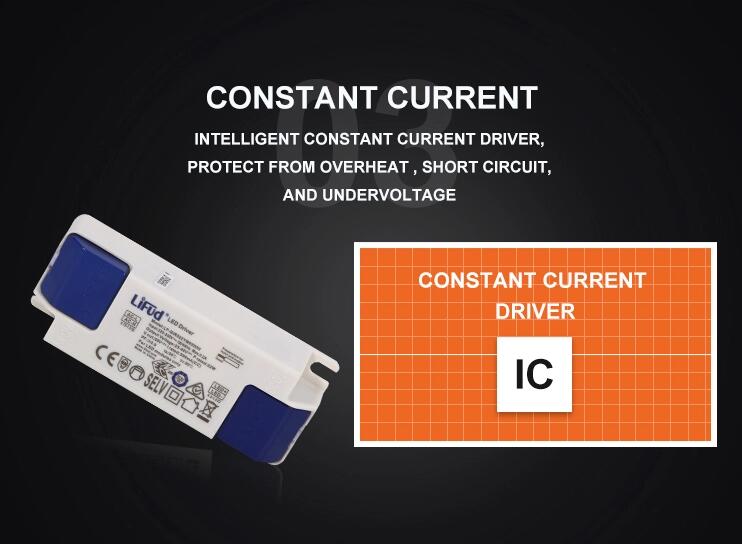

2. High quality isolated constant current driver, dimming,
intelligent control function options.
3. High quality SMD chip, high luminous efficiency, stable
performance and uniformity, comfortable lighting layout.
4. Easy to install. Ideal to be built into system ceilings,
offices, and can be used as a suspended light fixture.
5. Lock cable DC plug for led panel light.
6. LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and
EMC certified.
3. Packaging:
| 12W | 1.Qty/ctn:50pcs
2.Gross weight: 12KGS 3.Size of carton: 65*28*20cm | 24W | 1.Qty/ctn:30pcs
2. Gross weight:11KGS 3.Size of carton: 58*44*23cm |
|
|
|
|
|
|
| 18W | 1.Qty/ctn:40pcs
2.Gross weight: 9KGS 3.Size of carton: 38*33*32cm | 30W | 1.Qty/ctn:20pcs 2.Gross weight:13KGS 3. Size of carton: 54*38*28.5 |
|
|
|
|
|
|
4. LED Panel Light Features:
1. Ultra slim and unlimited design and various dimensions are
available;
2. High efficiency constant current drive system, with heat
protection system, can work under unstable voltage;
3. Soft and wide light emitting
4. Energy saving about 70%;
5. No infrared rays, no ultraviolet radiation, no thermal effect;
5. Specification:
| Model | Shape | Emitting | Size(D*H) | Cutout | Total
Lumen | LED Type |
| AD-RM-RL-PAL-12W | Round | Back
Lighting | Φ90*H16mm | Φ70mm | ±1320LM | SMD2835*84PCS |
| AD-RM-RL-PAL-18W | Φ120*H16mm | Φ105mm | ±1980LM | SMD2835*144PCS |
| AD-RM-RL-PAL-24W | Φ170*H16mm | Φ155mm | ±2540LM | SMD2835*240PCS |
| AD-RM-RL-PAL-36W | Φ225*H17mm | Φ205mm | ±3520LM | SMD2835*360PCS |
| AD-RM-RL-SPAL-12W | Square | 90*90*H16mm | 70*70mm | ±1320LM | SMD2835*96PCS |
| AD-RM-RL-SPAL-18W | 120*120*H16mm | 105*105mm | ±1980LM | SMD2835*162PCS |
| AD-RM-RL-SPAL-24W | 170*170*H16mm | 155*155mm | ±2540LM | SMD2835*264PCS |
| AD-RM-RL-SPAL-36W | 225*225*H17mm | 205*205mm | ±3520LM | SMD2835*396PCS |
