7W 15W 25W 35W 50W COB LED Down Light Rotational Gimbal Aluminum 60
degree
1. Gimbal Rorational COB LED Down Light Parameter:
| Name | Gimbal Rotational COB LED Down Light |
| Wattage | 7W 15W 25W 35W 50W |
| LED | Cree COB |
| IP rating | IP20 |
| Lumen | 100lm/w |
| Voltage | AC85-265v |
| Color | white / warm white / neutral white |
| Beam degree | 15° / 24° / 38° / 45° / 60° |
| Feature | 1.High Power, energy conservation, high brightness, good heat
dissapation |
| 2.No flicker, no harm to eyes and health design |
| 3.Compact and polishing and beauty design |
| Application | 1.Directly replace traditional light |
| 2.Home and commercial area |
| Advantage | 1.Constant current design, low light degradation |
| 2.Long life-span, strong stability |
| 3.Easy setting, shock-proof and concussion-proof |
| Ccertificated | CE, ROHS, EMC, FCC, LVD |
| Service | OEM, ODM, custom |
| Warranty period3 | years |
2. Gimbal Rorational COB LED Down Light Advantages:

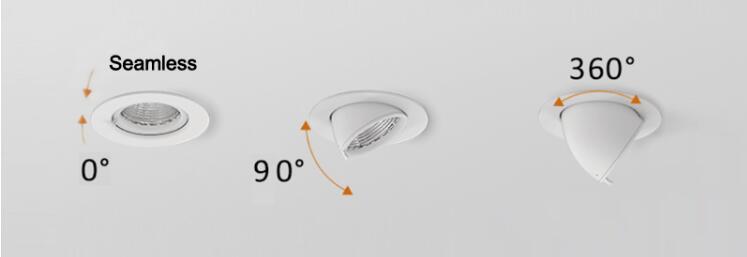

1. Rotational Ring: Horizontal 360 degree, Vertical 90 degree
2. Cree COB Chip: High CRI>93Ra, UGR<19, High
Lumen>100LM/W, CCT: 2700K / 3000K / 4000K / 5000K / option
3. Reflector: PMMA replector optical penetration rate above 93%,
beam angle 15° / 24° / 38° / 45° / 60° optional.
4. Wire diameter: 4.5mm stead secure
5. DC interface diameter: 11mm closed connected, quickly connected,
easily disassemble
6. Extruded section 6063 aluminum: integrated heatsink is good for
heat dissipation, passed 60℃ degree high temperature test.
7. LED driver: Adopt external isolated constant currennnt driver,
stable quality, long life.
3. Specification:
| Model Number | Power | Lumen Effect | CRI | CCT | Beam Angle |
| AD-DL-A-7W | 7W | 85-95LM/W | 85RA | 2700K
3000K
4000K
5000K | 24° 25° |
| AD-DL-A-15W | 15W | 90-100LM/W | 15° 24°
38° 60° |
| AD-DL-A-25W | 25W |
| AD-DL-A-35W | 35W |
| AD-DL-A-50W | 50W | 85-95LM/W | 23° 38° 60° |
4. Features:
1. Can be easily fitted instead of ordinary halogen bulbs.
2. Zero Maintenance. Lifespan is over 50,000 hrs.
3. Save effort and maintenance costs on changing bulbs frequently.
4. Safe For Your Health. Contain no mercury and do not contain any
UV/IR light, safe for your home and the environment.
5. 3 Year Warranty. 3 -year unlimited warranty means we've got you
covered! Contact us for an easy and fast replacement.
5. Brief information:
Voltage: AC220-240V / AC100-240V
Power: 7W 15W 25W 35W 50W
LED Chip: Citizen LED 1203C4 / Cree COB LED
CCT: 2700K, 3000K, 4000K, 5000K
Luminous efficiency: 100LM/W±5%
CRI:>80Ra
Beam Angle: 15 degree, 24 degree and 38 degree 60 degree
LED Driver: Lifud driver or driver or other drivers
Cutout: 125-130mm, 150-155mm, 170-175mm
Material: Die-casting Aluminum
Warranty: 3 Years
6. LED COB Down Light Description:
ADO Gimbal Rotational COB LED Down Light is recessed mounted, it is
seamless from 0 degree, and can be rotational to 360 degree. And
the beam angle could be choose from 15 degree, 24 degree and 38
degree, 60 degree. Which can meet many different lighting
requirements.
7. Our Services:
1. Fast reaction: Your inquiry related to our products or prices
will be replied in 24 hours
2. Standard: We produce and test our lamps according to the
international standards, and our products get CE RoHS SAA TUV UL
etc certificated.
3. Professional Team: Well trained and experience staffs will
answer your enquiry with professional knowledge.
4. After-sales: Follow up order production, shipping, installation,
quality feedback.
5. 2 Years warranty: Any defective products due to quality problem
during warranty period, will free of change and solve all the
problems.
8. Packaging:
25W Single package size: 49X33X44 cm
25W Single gross weight: 14.5 kg
25W Package Type: 18pcs/ctn, Carton: 49*33*44cm
