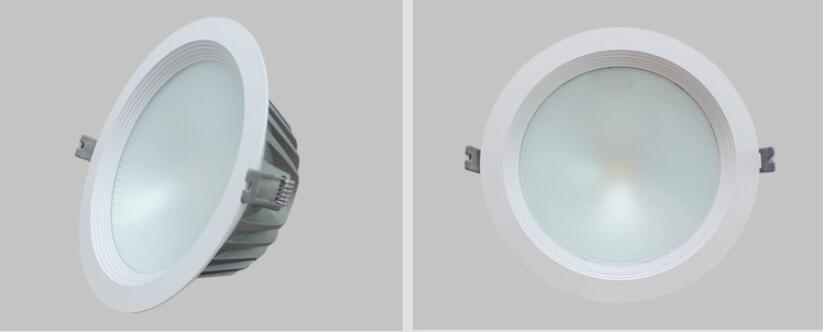

Cree COB LED Down Light Aluminum 12w 90Ra 4000K AC220V Dimmable
1. LED Down Light Specification:
| CREE COB LED Downlight Specifications |
| Model | AD-DL-5W-D | AD-DL-7W-D | AD-DL-9W-D | AD-DL-12W-D |
| Normal Voltage | AC 220-240V |
| Power | 5W | 7W | 9W | 12W |
| Cut Hole (mm) | 70 | 80 | 90 | 115 |
| Diameterφ(mm) | 98 | 108 | 118 | 138 |
| Lumens | 450-500lm | 630-700lm | 810-900lm | 1080-1200lm |
| LED chip | CITIZEN COB |
| CRI | >90Ra or >80Ra |
| CCT | 2700K-5000K |
| Beam Angle | 60° |
| Housing | Dia-cast Aluminum |
| Lifespan | 50000hours |
| Certificate | CE,ROHS |
| Warranty | 3 years |
2. 15W 20W 30W SMD LED Down Light Parameter:
| CREE COB LED Downlight Specifications |
| Model | AD-DL-15W-D | AD-DL-20W-D | AD-DL-30W-D |
| Normal Voltage | AC 220-240V |
| Power | 15W | 20W | 30W |
| Cut Hole (mm) | 155 | 160 | 210 |
| Diameterφ(mm) | 178 | 188 | 240 |
| Lumens | 1350-1500lm | 1800-2000lm | 2700-3000lm |
3. LED Down Light Technical Data:
1. Citizen COB LED Chip, 100LM/W
2. Frosted Glass Cover
3. CE LED Driver, Lifud//Osram, 0.93PFC
4. Die-casting aluminum, good heat dissipation
4. LED Down Light Advantages:
1.80%~90% energy saving than incandescent lamp,
2.Anti-shock, anti-moisture.
3.Advanced constant current driver.
4.No flickering,No RF interference,No UV radiation,
5.Body termerature less than 53 °C,
6.Easy installation, maintenance free.
7.Professional thermal management.
8.Great heat dissipation due to unique structural design.
5. Applications:
LED downlights are designed for general lighting applications in
office, supermarket, shop, school, hotel, etc. It is also widely
used for public areas, such as stairway, lobby, reception,
corridors etc.
6. Packaging:
2.5'' Carton size: 585*245*350MM 50PCS/CTN Gross weight: 15.3KG
3'' Carton size: 585*245*350MM 50PCS/CTN Gross weight: 16.6KG
3.5'' Carton size: 540*315*325MM 40PCS/CTN Gross weight: 13.92KG
4'' Carton size: 600*305*325MM 40PCS/CTN Gross weight: 18KG
5'' Carton size: 400*400*400MM 20PCS/CTN Gross weight: 12.87KG
6'' Carton size: 400*400*400MM 20PCS/CTN Gross weight: 14.67KG
8'' Carton size: 520*270*500MM 10PCS/CTN Gross weight: 11.51KG
7. Trade Term:
| Price term | EXW price |
| Certificate | CE ,ROHS |
| Payment terms | T/T, Western Union, Paypal |
| Sample time | 3-5 working days |
| Production time | 5-20 working day depend on the quantity |
| Custom design | OEM&ODM |
| Packing | Carton or Flight case |
| Warranty | 2 years |
| Shipping method | By DHL ,UPS,TNT ,FEDEX if small order, and ship by sea or air if
bulk order |
8. Quality control:
1. Before the order can be confirmed finally,we would strictly
check the material , dimension of the sample step by step
2. We salesman ,also as a order follower,would trace every phase of
production from the beginning,We own well-tranied and passional
sales & after- sale services who can speak fluent Engligh language
3. We have a QC team ,every product would be checked by them before
packed
4. We have very experienced R&D engineers and we have strong
ability to do ODM projects
