Multi-color housing factory price ip44 pc aluminum 18 watt recessed
light 18w saa led downlight for shop mall
1. LED Down Light Parameter:
| LED Downlight |
| Model | Power | Size | Hole size | LED Chip | Luminous flux | Warranty |
| AD-TD-M-6W | 6W | 98*43mm | 75mm | 15 | 480lm | 3 Years |
| AD-TD-M-9W | 9W | 113*45.6mm | 85mm | 24 | 720lm | 3 Years |
| AD-TD-M-12W | 12W | 140*49.7mm | 110mm | 32 | 960lm | 3 Years |
| AD-TD-M-18W | 18W | 175*55.3mm | 140mm | 48 | 1440lm | 3 Years |
2. Specification:
| Light Source | LED SMD 5730 |
| Warranty(Years) | 3 |
| Input Voltage(V) | AC100-240V |
| Lamp Luminous Flux(lm) | 1440LM |
| CRI (Ra>) | 80 |
| Working Lifetime(Hour) | 50000 |
| Lamp Body Material | PC |
| IP Rating | IP33 |
| Certification | C-tick, CCC, CE, EMC, RoHS, SAA, SASO, BV |
| Model Number | AD-DL-M-18W |
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | ADO |
| Application | office indoor lighting |
| LED Light Source | SMD5730 |
| OEM/ODM | Accepted |
| Dimmable | is Available |
| Beam Angle | 90 degree |
| Chip Brand | Epistar Bridgelux Sanan |
| Material | Aluminum+PC |
| CCT | 3000K 4000K 6000K |
| Cover | frosted Milky |
| PF | >0.5 |
| Item Type | Downlights |
| Shape | Round |
| Lamp Luminous Efficiency(lm/w) | 80LM/W |
| Material | PC+aluminum |
| Power | 6W 12W 18W 24W |
3. LED Down Light Advantages:

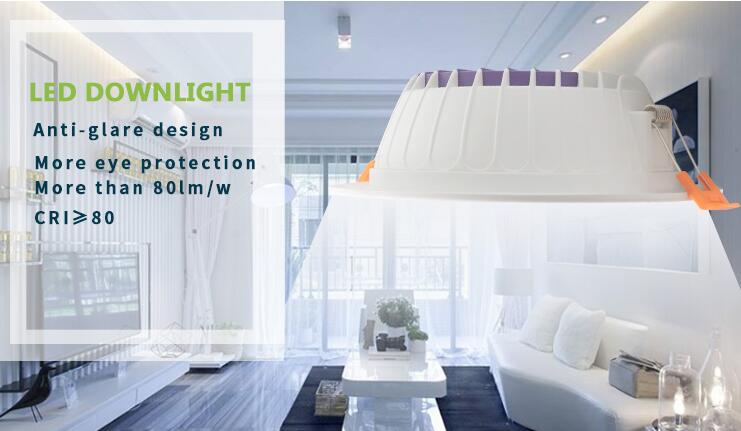

1. Frame: Anti-glare design, more eye protection
2. Lamp Body: Using flame retardant PC material, meets the
requirements of various countries hipot test standard
3. LED Chip: High light efficiency, ultra low light decay, high
color rendering index
4. Matte lens: Optical grade PMMA material, soft light, eye
protection
5. Intelligent IC driver: overvoltage protection, overcurrent
protection, safe annd stable without stroboscopic

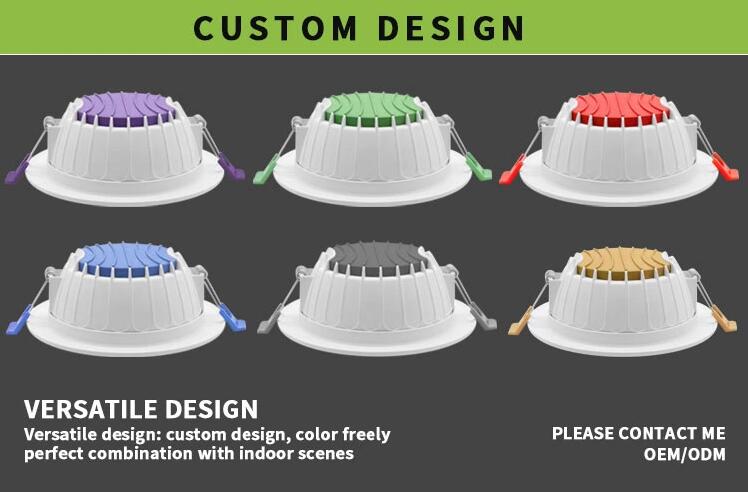

6. Versatile design: custom design, color freely, protect
combination with indoor scenes
4. Features:
1. Can be easily fitted instead of ordinary halogen bulbs.
2. Zero Maintenance. Lifespan is over 50,000 hrs.
3. Save effort and maintenance costs on changing bulbs frequently.
4. Safe For Your Health. Contain no mercury and do not contain any
UV/IR light, safe for your home and the environment.
5. 3 Year Warranty. 3 -year unlimited warranty means we've got you
covered! Contact us for an easy and fast replacement.
5. Why Choose Ado Electronics Limited?
a. We are the firstest group to promotion this product. We always
do best to support our customer.
b. We can offer you high quality led filament bulbs.
c. We can offer you the best service.
d. We are always be you side when you need us.
