C026 Stair LED Aluminum Profile Recessed Opal Cover 2M 3M 6063 T5
14.3MM
1. Description:

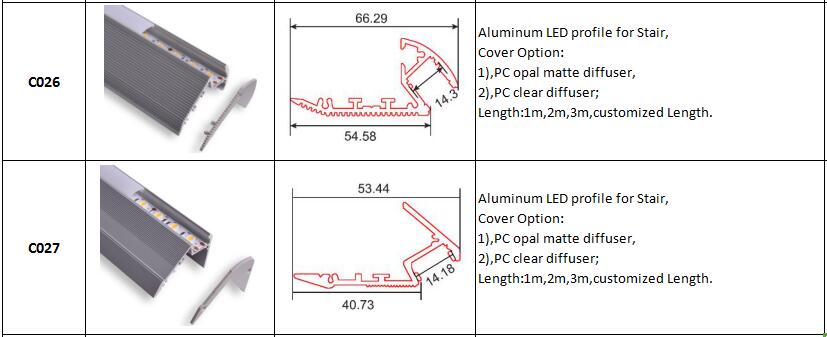

Our C026 and C027 LED Aluminum profile is for stair lighting, it is
use 6063 T5 Aluminum Alloy material, the length can be 2M or 3M.
The PCB width is 14.3mm. It can be recessed mounted ans surface
mounted based on your needs. Cover can be opal or clear. It is high
corrosion resistance, 5-10 years weather resistance. Also it is
saving energy, eco-friendly, no lead, no pollution to the
envoironment.
2. Aluminum LED Profile Technical Data Sheet:
| Ingress Protection Rating | IP20 (Standard), IP65 customized |
| Available Lengths | 0.5-3meters |
| Material | Body-Aluminum
Cover-Polycarbonate(PC)
End cap-polyproplylene(PP)
Mounting bracket, spring-steel |
| Full Set List | 1 pcs Aluminum
1 pcs Cover
2 pcs End Caps
2 pcs Clips |
| Cover Option | Clear, Opal, Frosted cover |
| Installation | Recessed, surface mounted, suspended |
| Size | Different sizes up to 80 types, also can customize new design |
| Operating Temperature Range | -30°C~60°C (-22°F~140°F) |
| Flammability | V2 Fire Rating for PC Cover |
| UV Stability | Ageing resistance |
| Heat Stability | Under 100°C |
| UL94 Rating | UL94V2 |
| Grade of Aluminium | 6063-T5 Anodizing |
| Heat Transmission properties | x gK(/J01x88.0 si taeh cfiiceps muinimulA °C) |
| Packing | Aluminum profile and cover separately packed,
or pre-installed with extra cost |
| Applications | A. Furniture production (kitchen / office)
B. Interior light design (stairs / storage / floor)
C. Stores shelf LED lighting
D. Independent LED lamp
E. Exhibition boot LED lighting
F. For flexible or hard LED strips |
3. Advantages:
1. Material: Anodized Aluminum 6063
2. High-purity aluminum embossing or glossy reflectors, light
refraction, utilization more efficient.
3. Ultra-thin appearance, generous appearance.
4. Designed for Flexible and hard led strips
5. The high pressure stretching into the U-shaped aluminum shell,
external electrostatic spray, corrosion-resistant
4. Packing Details :
1. Plastic bag or EPE wrapped for each separate profile;
2. 10 or more pieces packed in a paper box;
3. Wooden case or steel rack is available
4. Customized packing is acceptable.
5. FAQ:
Q1. Can I get samples for led aluminum profile?
A1: 15cm-1M free samples could be offered for checking quality.
Q2: Can we order customized length over 3 meters?
A2: Sure, the MOQ need 1000pcs, and shipment only by Sea.
Q3: Do you offer complete light with strip/power supply?
A3: Yes, we also produce led strips&power supplier, welcome
inquiry.
Q4: Do you have white or black color for the aluminum profile?
A4: Yes, it need to be customized, MOQ is 1000 meters.
Q5: Do you supply aluminum profile with the led strips and power
supply?
A5: Of course, just need to add the labor cost for installing the
led strips.
Q6: What's the accessories?
A6: PC cover, end caps and clips.
Q7: Do you have waterproof led strips?
A7: Yes, we have, please ask us for details.
Q8: Could you pre-install the cover into the aluminum?
A8: If you need, we can, but there is extra cost, because the labor
cost for installing cover is high, and takes some times. Hope you
could understand.
