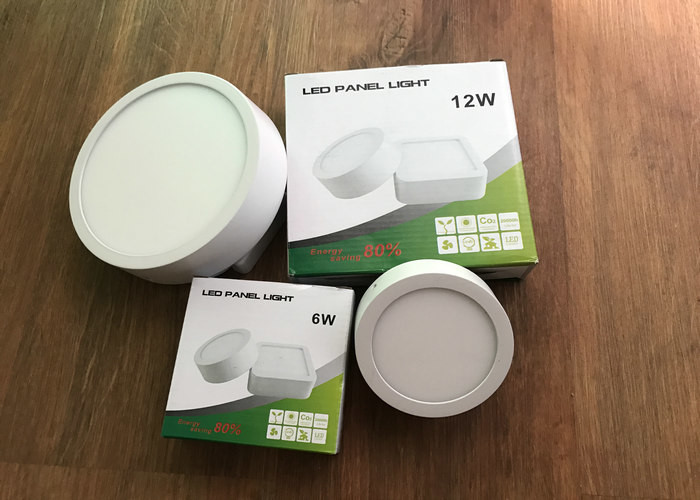

12w Dimmable LED Panel Light Surface Mounted IP44 80Ra 0.9PFC No
Flicker SMD2835
1. Specification:
| Power | 6W | 12W | 18W | 24W |
| Size | 90mm | 145mm | 175mm | 225mm |
| Luminous | 450LM | 990lmm | 1450lm | 1900lm |
| Size | 90mm | 145mm | 190mm | 225mm |
| Inut voltage | AC85-265V | AC85-265V | AC85-265V | AC85-265V |
| Packing | 100PCS/CTN | 20PCS/CTN | 20PCS/CTN | 10PCS/CTN |
| Warranty | 3 year | 3 year | 3 year | 3 year |
| LED Chip | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| LED Quantity | 30pcs | 60pcs | 90pcs | 120pcs |
| LGP | 3mm | 3mm | 3mm | 3mm |
| IP Rank | IP20 | IP20 | IP20 | IP20 |
| CRI | 80 RA | 80 RA | 80 RA | 80 RA |
| Safety Standard | CE RoHS SAA | CE RoHS SAA | CE RoHS SAA | CE RoHS SAA |
2. Description:
1. Ado DimmableLED Panel Light adopts qualified super bright LED as
light source, which is stable, long life and no UV & IR emission.
2.The anodized aluminum frame is stylish and fashionable with
everlasting color.
3. It is powered by high voltage constant current traice dimmable
led driver, which is safety, energy saving, output short circuit
protection, pass CE SAA and TUV test.
4. Dimmable LED Panel light is the ideal replacement for
traditional grid lights and fluorescent tubes. Moreover, the Panel
light creates extremely harmonies and uniform lights, which
conventional light never achieved.
3. LED Chip Specification:
LED Brand: Epistar
LED Chip: SMD2835
LED Lumen: 22-24pcs
LED Power: 0.2W
LED Current: 60mA
LED Voltage: 2.8-3.6V
Beam Angle: 120°
Size: 2.8 (L) ×3.5 (W) ×0.8 (H) mm
Working Temperature: - 30°C ~ + 80°C
4. Dimmable LED Driver Specification:
Type: IC constant current wide voltage
Input Voltage: AC90-130V / AC185-265V
Output Voltage: 15-30Vdc / 24-42Vdc
PF>0.9
Ouput Current: 150-350mA ±3%
Output Wattage: 5-9W
Dimming Range: 0-100%
Efficiency: ≥80%
Dimension(mm): L88×W38×H21(PCB65*32*18)
Weight: 55g
Environment: -15-50℃
Certificates: CE RoHS SAA TUV
Warranty: 3 Years
5. Techncical Data:
Name: Surface Mounted Slim LED Panel Light
Model: AD-EPS-PAL-12W
Input Voltage: AC85-265V
Power: 12W
Driver : Smart IC Isolated constant current
Dimmable: Triac Dimmable
Size(mm): φ145*H18mm
Rated lifetime: 50.000 hours
LED Brand: Taiwan Epistar SMD2835
LED Type: 0.2W 24-26LM
LED Quantity:60pcs
CCT: 3000K / 4000K /6000K
Lumen: 1000LM ± 100 LM
Color Rendering Index: 80RA
Operation temperature: -20℃~+60℃
6. LGP Parameters:
| Light guide plate (LGP)brand | Japan Mitsubishi |
| LGP thinkness: | 3mm |
| LGP technology: | Dot Laser |
| LGP light transmittance: | 90% |
| Insulation grade: | II |
| Energy-saving level: | A PLUS |
| Place of Origin: | China |
| Approval mark: | CE RoHs |
7. Features:
1. Energy Saving
2. Low power consumption
3. 90% Lighting Area
4. Narrow Edge
5. No RF Interference
6. Nice Appearance
7. No Dark Area
8. Low Maintenance Cost
9. Environmental Protection
10. Low Light Decrease
