Dimmable DC12V 5W LED Spot Bulbs 3000K SMD3030 50mm 45 Degree 450LM

Product Categories

ADO ELECTRONICS LIMITED

Contact Now

Dimmable DC12V 5W LED Spot Bulbs 3000K SMD3030 50mm 45 Degree 450LM

Ask Lasest Price
Brand Name :	ADO
Model Number :	AD-SP05-5W
Certification :	CE ROHS
Price :	Negotiation
Payment Terms :	T/T, Paypal, Western Union
Supply Ability :	10,000 pcs per day
Delivery Time :	3-7 work days

Add to Cart

Product Details
Company Profile

Dimmable DC12V 5W LED Spot Bulbs 3000K SMD3030 50mm 45 Degree 450LM

Dimmable DC12V LED Spot Bulbs 5W 3000K SMD3030 50mm 45 Degree 450LM

1. 5W LED Spot Bulb Specifcation:

Model number	AD-SP05-5W	LED Lumen	110LM/W
Power	5W	Color temperature(K)	2700K 4000K 6000K
Lumen	450LM	CRI(Ra)	80Ra
Input voltage	DC12V	Shell material	Aluminum
Base	MR16	Lamp Size(mm)	50*57mm
LED brand	Epistar	IP rating	IP20
LED light source	1W	Life span(hour)	30000 hours
LED Quantity	5pcs	Warranty	2 years
Beam Angle	45 degree	Place of Origin	China
LED Type	SMD3030	LED Driver	IC constant current
Certificate	CE RoHS	Dimmable	Yes

2. Packing Inforrmation:

We use white box or color box, each lamp is with blister packing, then put into inner box. And 10pcs inner box was packaged by a kraft box. The last, 10pcs kraft box was packaged by a carton box.

Packing Size	Quantity
282830cm	100pcs
542839cm	200pcs
543337cm	300pcs

3. Features:

Voltage	AC220V, AC110V, AC85-265V, DC12V, AC12V
Power	3W, 4W, 5W, 7W
Color temperature	2700-3000K, 4000-4500K, 6000-6500K
LED Type	COB 1W, 3W, 5W and 7W, SMD5050, SMD2835 and SMD3030
CRI	80Ra or 90Ra
Dimmable	Dimmable and non dimmable version are optional
Beam Angle	30 degree, 38 degree, 45 degree, 60 degree, 120 degree
Housing color	white, black, grey, sliver
Base	GU10, MR16, E27, GU5.3
Material	Aluminum, Ceramic, PC.
Packing	Neutral white box, Neutral color box, Customize box.
Warranty	2 Year warranty and 3 years warranty

4. Description:

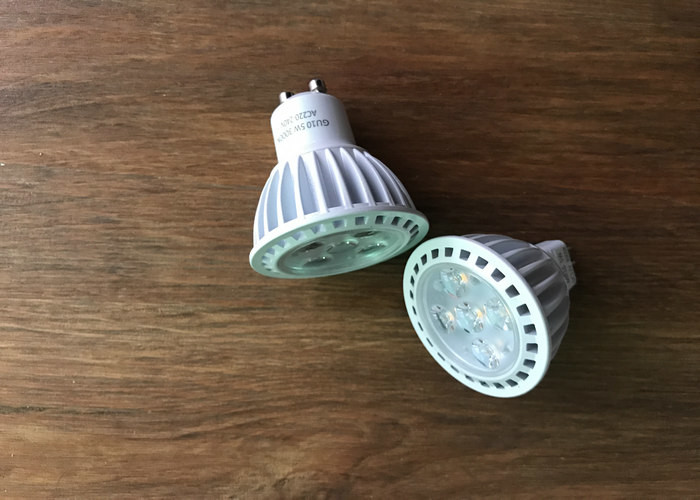

This LED Spot Bulbs are made of led driver, led chip, aluminum housing, base, and optical lens, each part is important, which can consist of a good quality product.

1. This LED Spot bulbs Light housing color is white, material is die-casting material. The housing color also can be black.
2. LED Driver is Isolated IC Constant Current Wide Voltage AC85-285V, which is more safer. prevent from short circuit. It is very intelligent and stable project.
3. LED Chip is from Taiwan Epistar, it is SMD3030, The led light souce lumen is 100LM/W, power is 1W.
high brightness with low decay. It brings high efficiency of our led spot bulbs, up to 5W for 400LM.

4. The aluminum housing bring good heat dissipation, coolling effect is great.

5. The base is MR16, also can make GU10, E27, international base, can replace old lamps.

6. Optical lens make the beam angle is different, can choose from 30 degree, 45 degree, 60 degree,

5. Advantages:

1. New high efficiency constant current drive for transparent led candle lighting

2. Energy-saving: Saving 80% power than traditional incandescent lamp

3. Easy to installation, shock proof and concussion-proof
4. No danger of broken glass

5. Solid-state, high shock / vibration resistant

6. Environmental-friendly: No UV or IR radiation, low heat radiation, mercury free, no polluting materials in the process of using;

7. Made of super brightness LED from quality Taiwan and USA chips. And special optical design.
8.The best service for transparent led candle lighting .

6. Application:

1. Basic commercial lighting
2. Hotel lighting, shopping lighting

3. Home lighting

4. Holiday decaration lighting

5. Store lighting

Dimmable DC12V 5W LED Spot Bulbs 3000K SMD3030 50mm 45 Degree 450LM
