100w COB LED Street Light LED Highbay Light Outdoor Lighting IP65
Aluminum
1. 100W LED Street Light Technical Data Sheet:
| Model | AD-ST-100W | Material | Die-casting Aluminum |
| Power | 100W | Body Color | Black/Gray |
| LED Type | 2pcs*50W COB Chip | Power Efficiency | > 90% |
| LED Brand | Epistar | Warranty | 3 years |
| Lumen | 9000LM | Light Color | WW / NW / CW |
| IP Level | IP65 | Temperature | 2700K-6500K |
| LED Driver | Isolated Wide voltage IC | Rated Voltage | AC 85V-265V |
| Size | 700*260*80mm | Power | Real Power |
2. Packaging and Installation:
| MODEL | Packging(CM) | Installation height(M) | Installation pipe diameter(CM) |
| AD-LSL-001-30W | 54*48*37/8PCS | 4-6M | 45-50CM |
| AD-LSL-002-50W | 54*48*37/8PCS | 4-6M | 45-50CM |
| AD-LSL-003-80W | 63*26*11/1PCS | 4-6M | 60CM |
| AD-LSL-004-100W | 73*29*12/1PCS | 4-6M | 65-70CM |
| AD-LSL-005-120W | 73*29*12/1PCS | 4-6M | 65-70CM |
| AD-LSL-006-150W | 96*36*12/1PCS | 5-10M | 65-70CM |
| AD-LSL-007-180W | 96*36*12/1PCS | 8-12M | 65-70CM |
| AD-LSL-008-200W | 107*38*14/1PCS | 8-12M | 65-70CM |
| AD-LSL-009-240W | 107*38*14/1PCS | 8-12M | 65-70CM |
3. LED Street Light LED Driver Characteristics:
1. IC chip is imported with high quality, high accuracy of constant
current
2. Protection function: over pressure, sub-pressure, incomplete
circuit, shock circuit
3. Every driver is tested through over-load ading, so that its
effective rate is less than 0.5%
4. The raw materials are supplied from fammous brand supplier as
well as the MOS.
4. LED Street Light LED Chip Features:
1. High Thick double gold wire, gold wire use 99.99% purity gold to
make
2. Top grade led chip: Every chip will not leak electricity as it
is strictly checked before leaving factory
3. Shock and attack resistance: More than 80 million times electric
current shock can be suffered
4. High luminous efficiency: The brightness and color temperature
are guaranteed to be normal after many times strictly tested.
5. Other model specification:
| Model No. | Size(MM) | LED Chip
Quantity | Weight |
| AD-LSL-001-30W | 510*230*80 | 30W×1pcs | 3kg |
| AD-LSL-002-50W | 510*230*80 | 50W×1pcs | 3.5kg |
| AD-LSL-003-80W | 620*260*80 | 40W ×1pcs | 4.2kg |
| AD-LSL-004-100W | 700*260*80 | 50W×2pcs | 5.2kg |
| AD-LSL-005-120W | 720*260*80 | 60W×2pcs | 6.1kg |
| AD-LSL-006-150W | 900*340*80 | 50W×3pcs | 8.0kg |
| AD-LSL-007-180W | 930*340*80 | 60W×3pcs | 9.7kg |
| AD-LSL-008-200W | 1050*360*120 | 50W×4pcs | 17kg |
| AD-LSL-009-240W | 1050*360*120 | 60W×4pcs | 17kg |
6. Advantages:
1.Light body is made of good quality aluminum alloy with painting
or anodic treatment on surface, exiguity and unique design,
excellent heat dissipation
2. Built-in LED driver with IC ensure stability of light, it can
work efficiently under
3. AC85-265V in different countries and regions.AC12/24V led driver
is also available
4. Long life span>50000hrs
5. High brightness, low consumption, green for environment
6. High Power, high lumen, high quality
7. Save 80% more energy compared with traditional lighting fixtures
8. Easy to install and use, secure and reliable
9. No UV or RF interference, No mercury or lead
10. Potection grade is IP65

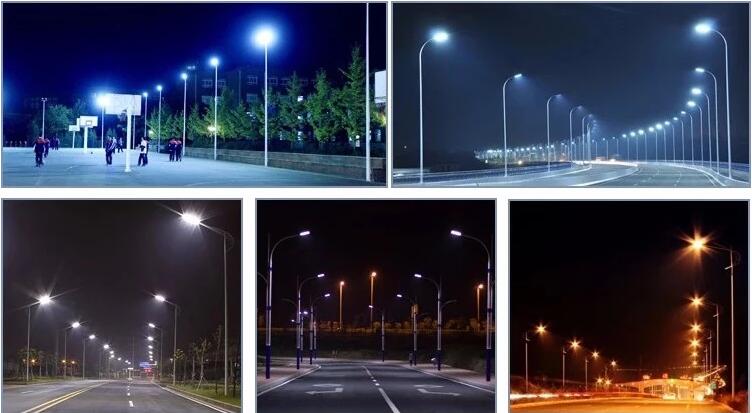

7. Application:
The Classic Sword Shape Street Lights are mainly applied to urban
expressway, trunk road, secondary roads, slip roads, factories,
schools, gardens, a variety of residential quarters, city squares,
courtyards and other road lighting.
8. Installation introduction:
1. First please link the terminal plugs of street light and the
pole on the terminal block: Brown wire(L) to the Brown(L), Blue
wire to the Blue, and Yellow green wire(G) to the Yellow green
one(G); then close the PC cover after linking the plug steady,
Following do well work of waterproofing and insulation measures,
last put the terminal block wiring into the pole
2. Please loosen the screw to fix the pole on the fixture and then
insert the fixture into the pole.
3. Fasten the fixing screw(street light installation need to fix
the torque on the screw: 29Nm), then fix the light on the pole.
