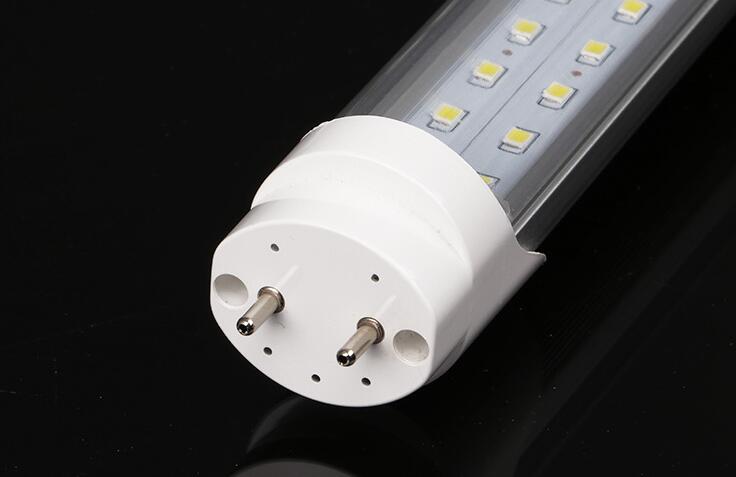

LED Tube Light T8 1200mm 18W Epistar SMD2835 Aluminum PC AC120V
Clear Cover
1. Description:
Among the most important properties of LED tubes is the possibility
of light direction – the entire luminous power of a LED tube can be
directed in a narrower beam to wherever the light is required.
Owing to the directivity and good luminous efficacy, LED tubes
provide illuminance equal to that of other lighting technologies at
lower electric power consumption.
LED tubes are typically made of durable plastic and aluminium,
which means that they will not shatter.
The technical development of LED tubes has been fast throughout
their entire marketing period. Luminous efficacy has reached even
150lm/w.
2. Advantages:
1. High luminous efficiency
2. High efficiency lamps
3. High power efficiency
4. Long lifespan 30000 hours
5. No mercury, no pollution
6. Wide color temperature range
7. High color rendering index
8. There is no ultraviolet radiation.
9. Non-glass products, not easy to break, impact resistance,
vibration resistance.
10. Use safety
3. T8 LED Tube Technical Data Sheet:
| Model number | AD-T8-1200mm-18W |
| Power factor | >0.9 |
| Shell material | Aluminum+PC |
| Cover color | Milky / clear |
| Lamp Size(mm) | L1200*Φ16 |
| IP rating | IP44 |
| Life span(hour) | 30000 hours |
| Warranty | 2 years warranty |
| Place of Origin | China Guangzhou city |
| LED Driver | Internal IC constant current |
| Power | 18W |
| Input voltage | AC85-265V |
| LED brand | Epistar |
| LED light source | SMD2835 |
| LED Quantity | 96pcs |
| Luminous efficiency | 100LM / W |
| Total Lumen | 1800LM |
| Color temperature(K) | 3000K / 4000K / 6500K |
| CRI(Ra) | 80 RA |
4. Description:
LED tubes are usually produced using a large number of low or
medium-power LEDs. With the help of these, light output and heat
conduction are balanced out across the entire tube length. The
operating temperature of LED tubes is lower as compared to
traditional lighting technologies, and a LED tube produces less
heat than traditional fluorescent lamps.
5. Applications:
1. Widely used for home, hotel, clubs, shopping malls and etc:
2. Used for packing lot, office, warehouse, supermarket shelf and
etc:
3. Applicable for freezer and refrigerator lighting, furniture
lighting and etc;
6. Othe model item:
| Model number | Length | Power | Lumen | Voltage | CRI(Ra) | LED Chips |
| AD-T8-300mm-5W | 300mm | 5w | 500LM | AC85-265V | 80 Ra | 24pcs |
| AD-T8-600mm-10W | 600mm | 10w | 1000LM | AC85-265V | 80 Ra | 48pcs |
| AD-T8-900mm-15W | 900mm | 15w | 1500LM | AC85-265V | 80 Ra | 72pcs |
| AD-T8-1200mm-18W | 1200mm | 18w | 1800LM | AC85-265V | 80 Ra | 96pcs |
| AD-T8-1500mm-24W | 1500mm | 24w | 2100LM | AC85-265V | 80 Ra | 120pcs |
7. Classification:
According to the LED tube diameter classification: T5, T8, T10, T12
According to the classification of LED tube cover: milkly cover,
clear cover, frosted cover
According to the classification of led tube material: Aluminum led
tube, PC led tube, Glass led tube.
According to the classification of LED tube control functions:
conventional LED tube, voice-activated LED tube, infrared control
LED tube, intelligent LED tube, motion sensor led tube, Radar
mircowave led tube.
