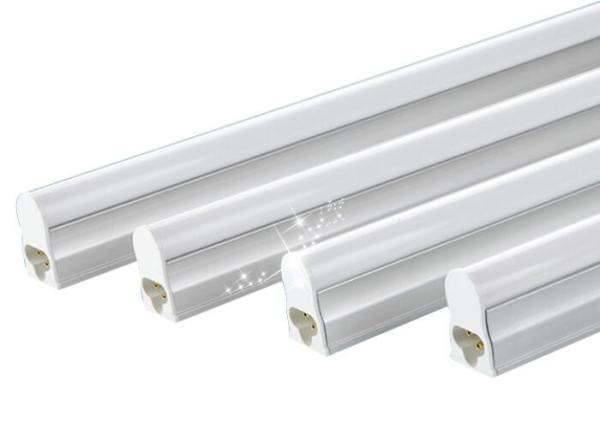

T5 Integration LED Tube Lamp 60cm 10W Aluminum Seamless 130LM/W CE
UL DC24V
1. Description:
Our Integration T5 led tube lamp adopt Epistar SMD2835 led chips,
one chip is 24-26LM, 0.2W. Which make the luminous efficiency is up
to 100LM/W, also can customized 130Lm/W. The cover is clear cover
and milky cover, clear cover light transmittance is higher than
milky cover, but milky cover light is more soft and uniform. Input
voltage is AC85-265V, also can customize DC12V and DV24V. The T5
led tube lamp housing is aluminum material, better heat dissipation
with low heat. The led driver is IC constant currenct, longlife
span and very safety driver solution, which is smart and
intelligent led driver with low defective rate. For the warranty,
we provide 2 years warranty, also can offer 3 years and 5 year
warranty based on customer's different quality standard. The power
is 5w for 30cm, 10w for 60cm, 15w for 90cm, 18w for 120cm, and 24w

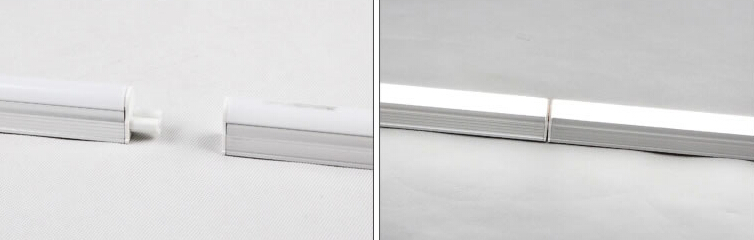

for 150cm. Color temperature is 2700-6500K. And it is seamless, or
called linkable, 2 pcs led tubes could connect without gap.
2. Advantages:
1. Easy maintenance
In principle, anyone can replace a LED tube. In case of products
based on the Retro-Fit installation approach, LED tubes contain all
the electronics required, which means that in the event of LED tube
failure, replacement or even fluorescent tube reinstallation is
simple.
2. Electricity consumption
As compared to T8 fluorescent lamp technology, LED tubes can reduce
electricity consumption by more than 50%. Installation and
maintenance cost savings can also be expected, since the service
life of LED tubes is typically 3-5 times longer than that of
fluorescent lamps.
LED tubes constitute an excellent choice for cold room lighting,
since the reduced heat generation allows additional savings through
reduced refrigeration-related energy consumption.
3. Recyclability
At the end of their life cycle, LED tubes must be disposed of as
recyclable waste electrical and electronic equipment, and the
product manufacturer/importer is required to take care of recycling
arrangement. In most cases, recycling service arrangement is
outsourced to a nationwide operator and collection points are
available at most localities. Manufacturer/importer-specific
differences are possible in the arrangements. As opposed to
fluorescent lamps, mercury or heavy metals are generally not used
in LED tubes.
3. T5 LED Tube Lamp Specification:
| Model | Length | Power | Lumen | Voltage | CRI(Ra) | LED Chips |
| AD-T5-30-5W | 300mm | 5w | 500LM | AC85-265V | 80 Ra | 24pcs |
| AD-T5-60-10W | 600mm | 10w | 1000LM | AC85-265V | 80 Ra | 48pcs |
| AD-T5-90-15W | 900mm | 15w | 1500LM | AC85-265V | 80 Ra | 72pcs |
| AD-T5-120-18W | 1200mm | 18w | 1800LM | AC85-265V | 80 Ra | 96pcs |
| AD-T5-150-24W | 1500mm | 24w | 2100LM | AC85-265V | 80 Ra | 120pcs |
4. T5 led tube lamp technical data:
| Power factor | >0.9 |
| Shell material | Aluminum+PC |
| Cover color | Milky / clear |
| IP rating | IP44 |
| Life span(hour) | 30000 hours |
| Working temperature | -30-70℃ |
| Place of Origin | China Guangzhou city |
| LED Driver | Internal IC constant current |
| Luminous efficiency | 100LM / W |
| Lamp Size(mm) | 16mm diameter |
| IP rating | IP44 |
| Life span(hour) | 30000 hours |
| Warranty | 2 years warranty |
| Place of Origin | China Guangzhou city |
| Color temperature(K) | 3000K / 4000K / 6500K |
5. Application:
1. Large-scale factories, production workshops, worktables, and
office interior lighting;
2. underground parking, 24 hours use, saving considerable energy;
3. Hospital interior lighting;
4. Family lighting.
5. Shopping malls supermarket interior lighting;
6. School classroom lighting;
7. Warehouse
8. Subway, bus station, train station
