Integrated LED Slim Panel Light 24w Aluminum 2400LM New Product
3000K Square
1. 24W Technical Data Sheet:
| Item | LED PANEL LIGHT |
| Product Number | AD-T-SPAL-24W |
| Light Source | LED SMD2835, 0.2W, 24-26LM, 120leds |
| Power | 24W |
| Luminous Flux | 80-90LM/W |
| Input | AC85-265V |
| Color Temperature | 3000-3500K / 4000-4500K /6000-6500K |
| Dimming | No |
| Working Temperature | 55 degrees Celsius at room temperature 25 degree Celsius |
| Color Rendering Index | CRI > 80 |
| Beam Angle | 180 degree |
| Dimension | D225*H25mm |
| Cutout Size | D205mm |
| Material | Aluminum Alloy(back side)+PC(front side) |
| Surface Finish | White |
| LED Driver | Wide voltage IC constant current |
| Package | Stardard packing box |
| Installation | Recessed |
| Emitting | Side Lighting |
| Certification | CE ROHS |
| Warranty | 2 years |
| Type | Integrated LED Panel Light |
2. Product Advantages:
1. Ultra thin, good heat, long life, low cost of maintenance

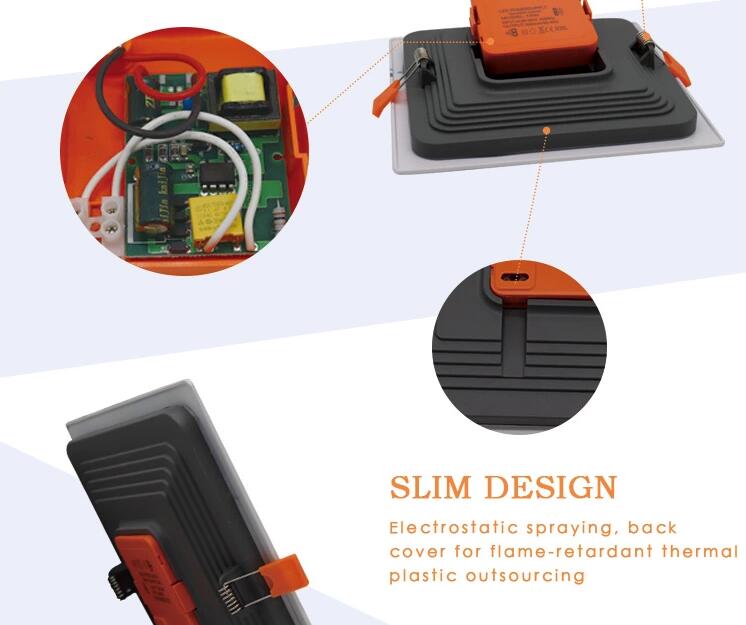

2. Scientifically-designed heat dissipater with much better cooling
effect;
3. Energy-saving and environment-friendly Led Lamp
4. Stable and intelligent led driver
5. Installation: Recessed Mounted
6. Housing Color: White / Black / Sliver / Bronze / Chrom / Nickel
3. Power & Size of Round / Square LED Panel Light:
| Model | Shape | Lumen | Size | Chip Quantity | LGP |
| AD-T-PAL-6W | Round | ±540LM | Φ90mm | SMD2835*30PCS | Mitsubishi PMMA Laser Dot
3mm |
| AD-T-PAL-12W | ±1080LM | Φ145mm | SMD2835*60PCS |
| AD-T-PAL-18W | ±1620LM | Φ170mm | SMD2835*90PCS |
| AD-T-PAL-24W | ±2160LM | Φ220mm | SMD2835*120PCS |
| AD-T-SPAL-6W | Square | ±540LM | 90*90*mm | SMD2835*30PCS | Mitsubishi PMMA Laser Dot
3mm |
| AD-T-SPAL-12W | ±1080LM | 145*145mm | SMD2835*60PCS |
| AD-T-SPAL-18W | ±1620LM | 170*170mm | SMD2835*90PCS |
| AD-T-SPAL-24W | ±2160LM | 220*220mm | SMD2835*120PCS |
4. Features:
1. No UV or IR radiation in the beam, mercury free.
2. Instant on, no warm up time required.
3. No noise, no flickering.
4. Anti-shock, anti-moisture.
5. Eco-friendly. No mercury and harmful materials
6. Energy Saving. Saving 55%-70% electricity cost to traditional
Panels.
7. Matched with constant current driver. CE,RoHS approval.
5. Why Choose ADO LED Slim Panel Light?
1. CE, RoHS, certified LED lights manufacturer
2. Large stock of led chips, led driver and LGP material
3. Short production lead time, fast delivery, discounted DHL/UPS
freight
4. Favorable price as PO qty increase
5. Excellent sales team providing on-time service
6. Strong R&D team with strength to develop new products every
month
7. 6 years LED Lighting experience
8. 3 Year Quality Warranty with good after-sales services
9. Free products industrial design, lighting plan design, Energy
saving calculation
10. Your business and private information would be protected
strictly .
11. Customized services could be provided.
6. After-sale Service:
1. 24 hours around the clock & 2 years warranty
2. Life-long maintenance service for the product
3. For problematic items, We are ready to exchange them or replace
them with an equivalent upon our receipt of previous.
4. For all your inquiries, please contact us immediately, We will
reply you as soon as possible.
