20W Round aluminum 100lm/W LED Bulkhead light with sensor
1. Specification:
| Model | AD-MP-07-20w | AD-MP-08-15w |
| Size(mm) | 270*145*78 | 210*110*65 |
| Power | 20W | 15W |
| Chip | SMD2835 | SMD2835 |
| Chip Qty (pcs) | 100 | 75 |
| IP Rating | IP65 |
| Lumen | 120LM/W or 80LM/W |
| CRI | >70 or >80 |
Color
Temperature | 3200-6500K | 3200-6500K |
| Housing Color | White/Black |
| Material | PBT+Aluminum |
| LED Driver | IC Constant smart driver |
| LifeSpan | 50000 Hours |
| IK Level | IK09 |
| Emergency Function | Optional |
| Double CCT | Optional |
| Name | IP65 LED Bulkhead Lamp |
| Place of Origin | Made In China |
| Warranty | 2 years |
| Certificate | CE RoHS EMC LVD 3C FC |
2. Features:
1. Material: PBT, excellent insulation performance, good heat aging
resistance
2. LED Chip: Taiwan Epistar brand, 0.2w/smd, 22-24LM, high lumen,
low decay, long lifespan
3. LED driver: IC constant current, Aishi electrolysis 10000 hours,
stable quality
4. Double color add $0.8/pcs; sound light control add $0.8/pcs; PIR
sensor add $1.9/pcs
5. Warranty: 2 years
4. FUNCTION:
1.It can identify day and night, and could choose the intensity of
illumination what is in the working atmosphere by free. When turn
the LUX knob to SUN symbol, it could be worked in any light, when
turn to MOON symbol, it only could be worked in the night when the
light is less than 3 LUX.
2.Time Delay continues adding: after first inducting, when it
receives the second induction signal again, the time delay will be
re-clocking base on the first remainder time-delay (Set Time).
3.Adjustable Time Delay: the length of time delay could be set
according to the customers' requirement, the minimum time of this
item is 10sec ± 3sec
4. Advantages:
1. Waterproof, dustproof and anti-corrosion.
2. This lamp circuit board for anticorrosive, waterproof, prevent
oxidation treatment, reduces the power inverter working
temperature, the high voltage isolation protection way, splice
double insulation treatment, to ensure the safe and reliable.
3. According to the actual working environment of the three-proof
lamp, the surface of the protection box of the lamp is sprayed with
nano-spray anti-moisture anti-corrosion treatment, and the dust and
water entry are eliminated
5. Application:
1. Enclosure wall;
2. Cellar wall;
3. Corridor wall;
4. House wall etc.
5. Stair,
6. Hotel,
7. Kitchen
8. Showcase

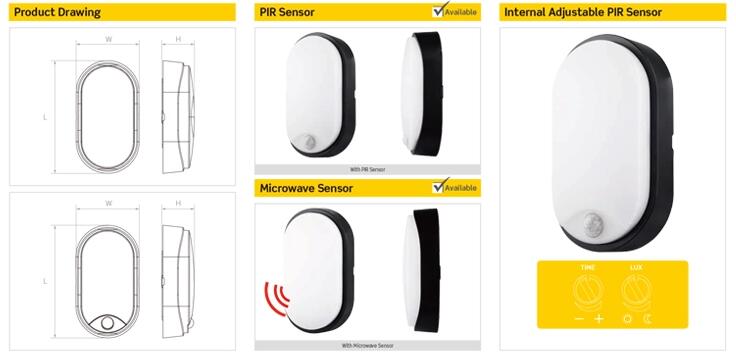

5. Product details:
