T5 LED Tube Lamp 24W 1500mm Integrated Aluminum Milky Cover
Diimmable Linkable
1. Application:
* Corridors,stairways,parking garages.
* Industry,warehouses.
* Building,office,home,school.
* Supermarkets and department stores,shops,ect.
* Outdoor application only with suitable luminaries or housing.
2. Description:

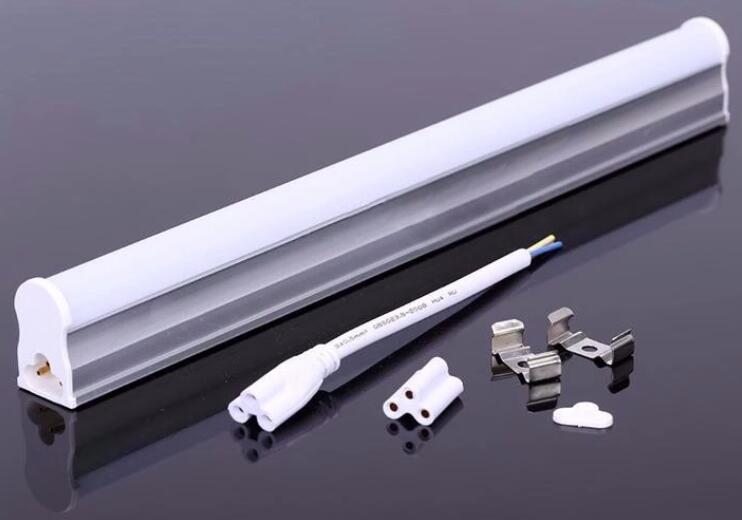

We have T5 led tube lamp and T8 led tube lamp, T5 led tube lamp is
with bracket, T8 is without the bracket. T5 diameter is 16mmT8 diameter is 26mm. Both length is 30cm, 60cm,
90cm, 120cm and 150cm. Power is from 5w to 24W. Adopt Epistar
SMD2835 led chips, one chip is 24-26LM, 0.2W. Which make the
luminous efficiency is up to 100LM/W, also can customized 130Lm/W.
The cover is clear cover and milky cover, Input voltage is
AC85-265V, housing is aluminum material, better heat dissipation
with low heat. The led driver is IC constant currenct, longlife
span and very safety driver solution. We provide 2 years warranty.
4. T5 LED TubeTechnical Data Sheet:
| Model number | AD-T5-1200mm-22W | Power factor | >0.9 |
| Power | 22W | Shell material | Aluminum+PC |
| Input voltage | AC85-265V | Cover color | Milky / clear |
| LED brand | Epistar | Lamp Size(mm) | L1200*Φ16 |
| LED light source | SMD2835 | IP rating | IP44 |
| LED Quantity | 120pcs | Life span(hour) | 30000 hours |
| Luminous efficiency | 100LM / W | Working temperature | -30-70℃ |
| Total Lumen | 2400LM | Warranty | 2 years warranty |
| Color temperature(K) | 3000K / 4000K / 6500K | Place of Origin | China Guangzhou city |
| CRI(Ra) | 80 RA | LED Driver | Internal IC constant current |
5. Advantages:
1. Compared with ordinary fluorescent lamps, LED fluorescent lamps
do not require ballasts, no starter, and no flicker.
2. Maintenance-free, frequent switching will not cause any damage.
3. Safe and stable quality can withstand 4kv high voltage, low heat
dissipation, can work at low temperature -30 °C high temperature 55
°C.
4. Good vibration resistance, easy to transport.
5. From the light effect breakthrough, diffusing (milk, mist) led
lamp, light efficiency reached 91lm / W, the industry average to
achieve 83lm / w
6. Led power parameters to improve: Isolated power supply
efficiency of 90%, only 10% of the electrical energy into heat, low
heat, greatly extended life expectancy,
6. Applications:
T5 LED tubes can be used for general lighting purposes at all
locations, with the exception of locations where both upwards and
downwards lighting is required. These include, for example, office
luminaires suspended from the ceiling and emitting light upwards
and downwards.
7. The difference between T5 and T8 LED Tube Lamp?
In theory, the T8 is brighter than the T5, and the larger the
diameter, the higher the brightness.
Nearly 80% of the fluorescent lamps in China are still T8.
Supermarkets, hospitals, factories, assembly lines, offices and
schools are almost all T8 lamps.
With the development of technology, the T5 lamp can replace the T8
tube lamp. The illumination, life, and stability are far beyond the
T8 tube lamp. The main difference in appearance appears to be that
T5 is small and fine, and T8 is thick and long.
8. Diameter for LED Tube Size:
T12 ----38mm diameter
T10 ----diameter 32mm
T8 ---- diameter 26mm
T5 ----16mm diameter
T4 ----12mm diameter
T3 ---- diameter 9mm
T2 ---- diameter 7mm
9. Features:
*Instant on,no flicker or buzz.
*High power factor over 0.95.
*Aluminum + PC materials, good heat dissipating.
10. Benifits:
*Mercury-free, no hazardous waste disposal.
*Suitable for operation at low temperatures.
